Hyundai Elantra: Electric Power Steering / Schematic Diagrams
Hyundai Elantra AD (2016-2020) Service Manual / Steering System / Electric Power Steering / Schematic Diagrams

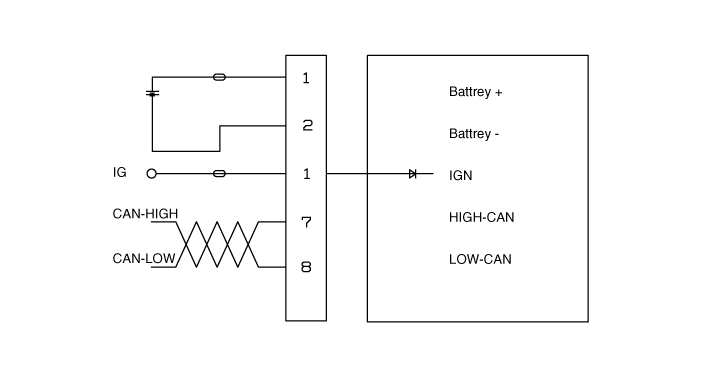

| Schematic Diagrams |
| Terminal Function |
| Type | Pin No | Description |
| Battery | 1 | Battery + |
| 2 | Battery - | |
| VSS | 1 | IGN |
| 2 | - | |
| 3 | - | |
| 4 | - | |
| 5 | - | |
| 6 | - | |
| 7 | HIGH CAN | |
| 8 | LOW CAN |
