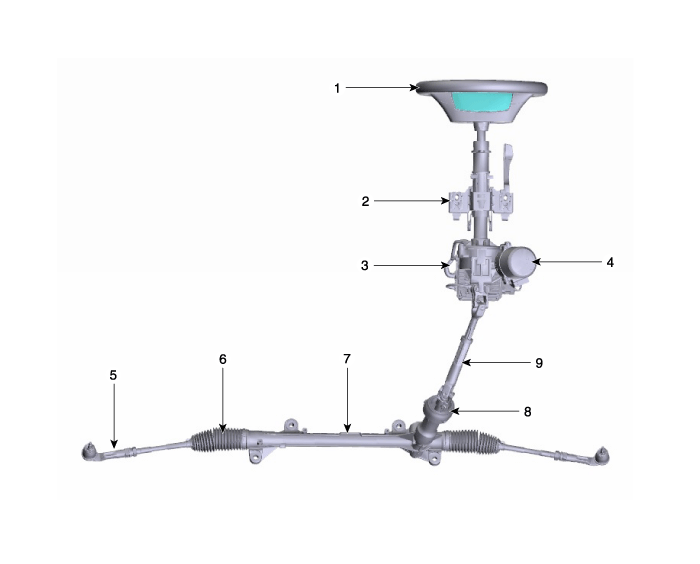

Components Location

1. Steering wheel
2. Steering column
3. MDPS ECU
4. MDPS motor
5. Tie rod end

6. Bellows
7. Steering gear box
8. Dust cover
9. Universal joint

Schematic Diagrams

Schematic Diagrams Terminal Function TypePin NoDescriptionBattery1Battery +2Battery -VSS1IGN2-3-4-5-6-7HIGH CAN8LOW CAN ...

Repair procedures

General Inspection After or before servicing the EPS system, perform the troubleshooting and test procedure as follows. Compare the system condition with normal condition in the table below and ...
