Hyundai Elantra: Rear Door / Rear Door Outside Handle Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Outside Handle Components and Components Location

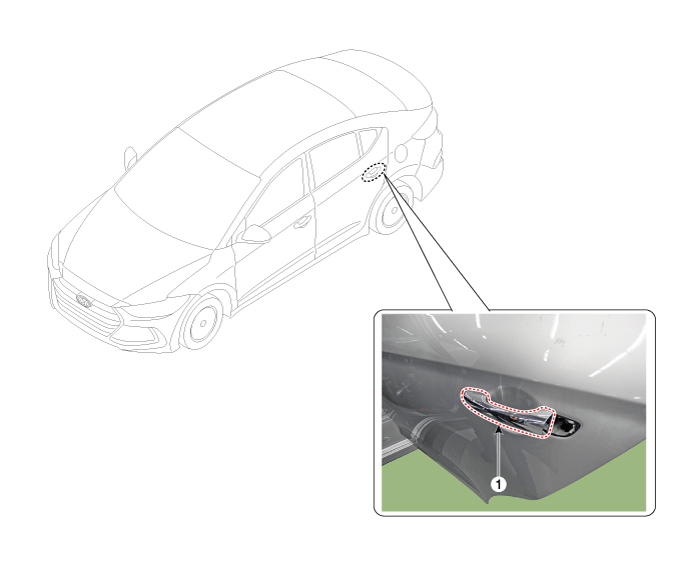

Component Location

1. Rear door outside handle


Rear Door Module Repair procedures
Replacement 1. Remove the rear door window glass. (Refer to Rear Door - "Rear Door Window Glass") 2. Remove the rear door outside handle. (Refer to Rear Door - "Rear Door Outside Handle") ...

Rear Door Outside Handle Repair procedures
Replacement 1. Remove the plug hole (B). 2. After loosening the mounting bolt, remove the front door lock (A). Tightening torque : 7.8 ~ 10.8 N.m (0.8 ~ 1.1 kgf.m, 5.8 ~ 8.0 lb-ft) 3. ...
