Hyundai Elantra: Crash Pad / Glove Box Upper Cover Housing Repair procedures

Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Crash Pad / Glove Box Upper Cover Housing Repair procedures

Replacement

•	Put on gloves to prevent hand injuries.

•	When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Take care not to bend or scratch the trim and panels.

1.	Remove the cowl side trim. (Refer to Interior Trim - "Cowl Side Trim")

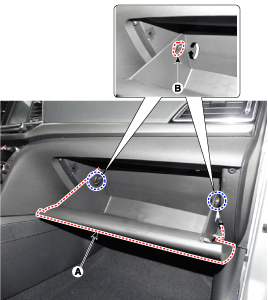

2.	Remove both stoppers (B) from the glove box (A) by turning the stoppers.

3.	Separate the air damper (A) from the glove box (B).

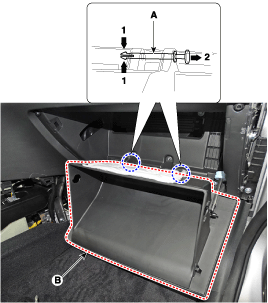

4.	Disconnect the pushpins (A) and then remove the glove box (B).

5.	Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

6.	Using a screwdriver or remover, remove the crash pad under cover [RH] (A).

7.	Loosen the mounting screws and remove the crash pad molding [RH] (A).

8.	Loosen the mounting screws and remove the crash pad side garnish assembly [RH] (A).

9.	After loosening the mounting screws and nuts, remove the glove box upper cover assembly (A).

10.

To intall, reverse the removal procedure.

•	Make sure the connector are connected in properly.

•	Replace any damaged clips (or pin-type retainers).

Glove Box Upper Cover Housing Components and Components Location

Component Location 1. Glove box upper cover housing ...

Main Crash Pad Assembly Components and Components Location

Components 1. Main crash pad assembly 2. Side defroster nozzle assembly [LH]3. Side defroster nozzle assembly [RH]4. Defroster center nozzle assembly5. Side defroster hose assembly [LH]6. Side ...
