Hyundai Elantra: Crash Pad / Glove Box Upper Cover Housing Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Crash Pad / Glove Box Upper Cover Housing Components and Components Location

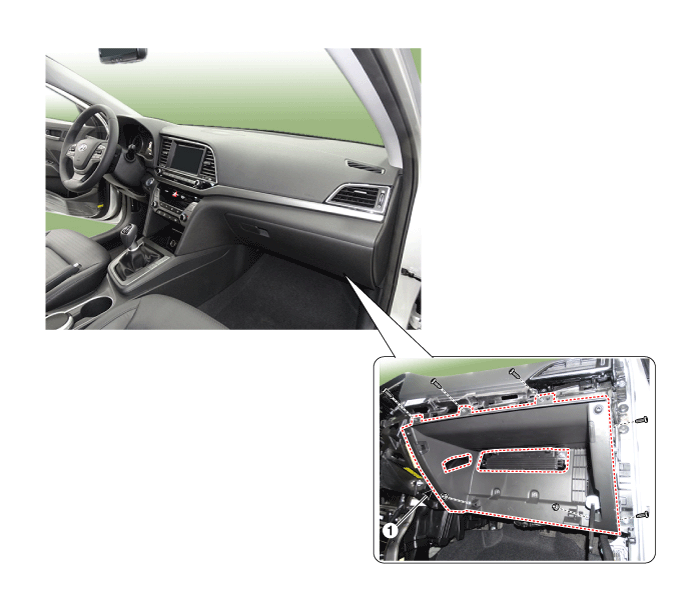

Component Location

1. Glove box upper cover housing
