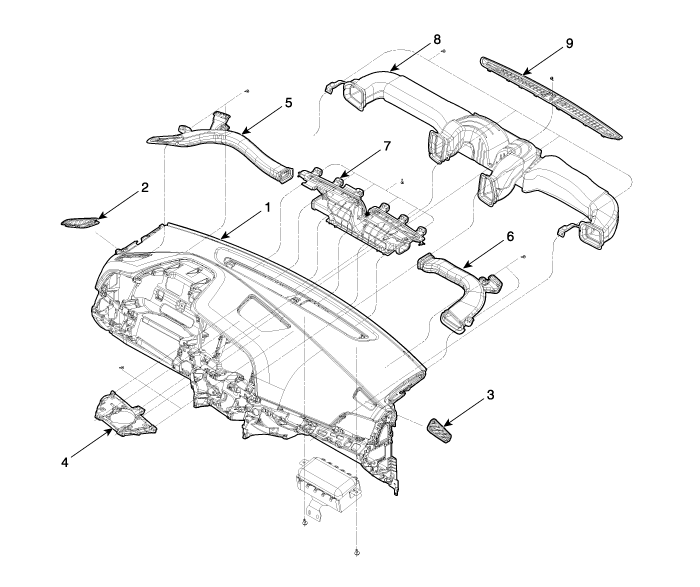

Components

1. Main crash pad assembly
2. Side defroster nozzle assembly [LH]
3. Side defroster nozzle assembly [RH]
4. Defroster center nozzle assembly
5. Side defroster hose assembly [LH]
6. Side defroster hose assembly [RH]
7. Defroster nozzle assembly
8. Heater connection duct connector assembly
9. Defroster nozzle cover assembly

Component Location

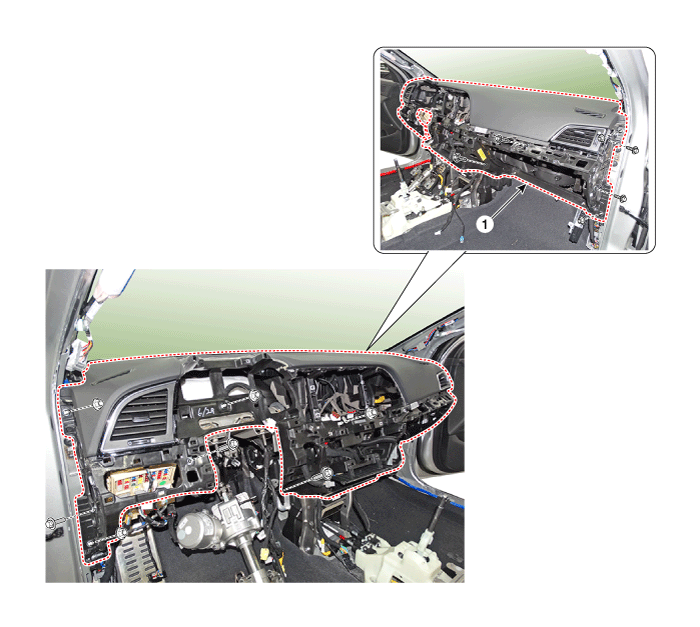

1. Main crash pad assembly


Glove Box Upper Cover Housing Repair procedures
Replacement     • Put on gloves to prevent hand injuries.     • When removing with a flat-tip screwdriver or remover, wrap protective tape around ...

Main Crash Pad Assembly Repair procedures
Replacement     • Put on gloves to prevent hand injuries.     • When removing with a flat-tip screwdriver or remover, wrap protective tape around ...
