Hyundai Elantra: Cylinder Head Assembly / Cylinder Head Cover Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Engine Mechanical System / Cylinder Head Assembly / Cylinder Head Cover Components and Components Location

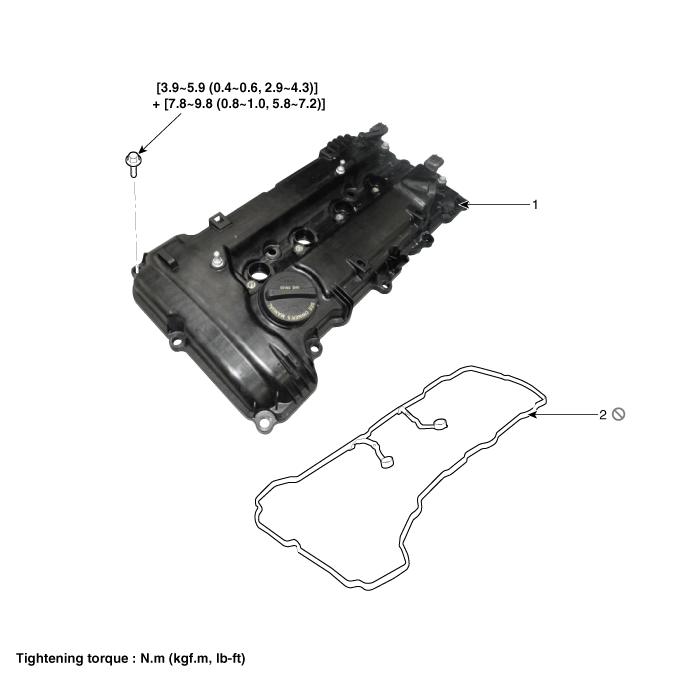

Components

1. Cylinder head cover
2. Cylinder head cover gasket

Components and Components Location
Components 1. Camshaft bearing cap2. Camshaft front bearing cap3. Exhaust camshaft4. Intake camshaft5. Exhaust CVVT assembly6. Intake CVVT assembly7. Cam carrier8. Cylinder head9. Cylinder head g ...

Cylinder Head Cover Repair procedures
Removal     • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wiring connectors carefully while holding the connector portion. ...
