Hyundai Elantra: Body Dimensions / Under Body Body Repair
Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Body Dimensions / Under Body Body Repair
| Projected Dimensions |

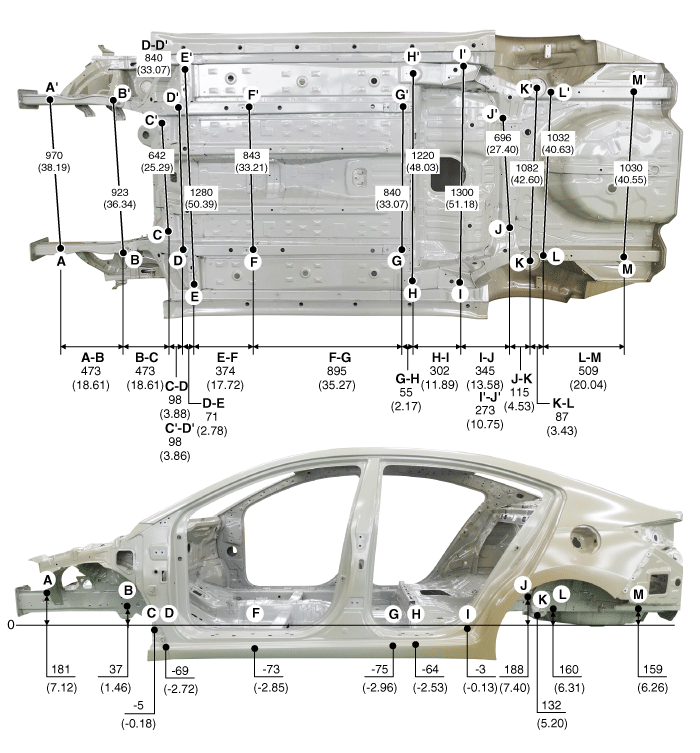

| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
| Actual Measurement Dimensions |

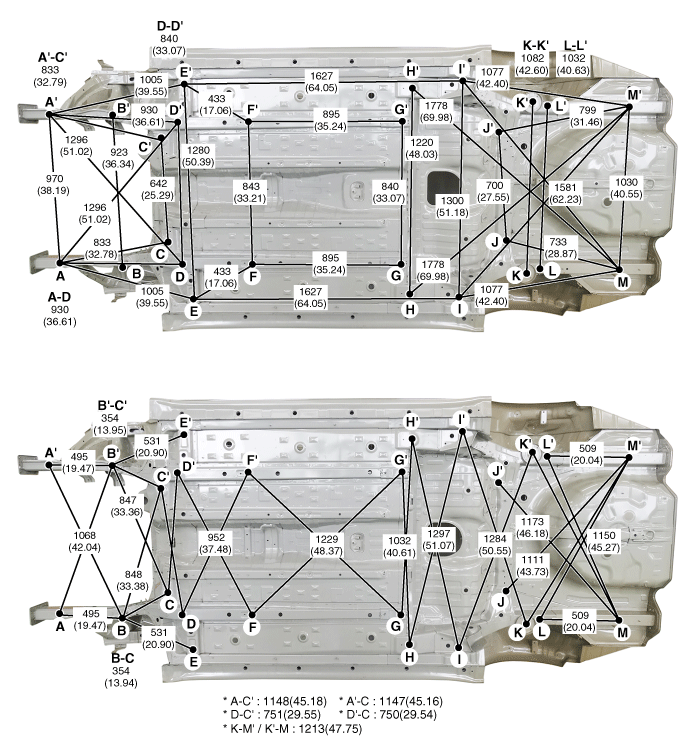

| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
|
|
|
| Front side member tooling hole (O25) | Front cross member mounting bolt | Sub frame mounting hole |
|
|
|
| Under cover mounting hole (O11) | Front side member reinforcement tooling hole (O8) | Front side member mounting hole (O13) |
|
|
|
| Center floor side member extension tooling hole (O8) | Rear side member front extension tooling hole (O25) | Trailing arm bracket tooling hole (O10) |
|
|
|
| Rear floor center cross extension tooling hole (O8) | Rear floor center cross extension tooling hole (O8) | Rear suspension spring mounting hole (O6) |
|
|
|
| Rear floor side member mounting hole (O16) | Rear floor side member mounting hole (O25) | Rear floor side member mounting hole (O25) |
Rear Body Body Repair
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]
Side outer panel rear cornerSide outer panel rear cornerSide outer panel rear cornerRear co ...
