Hyundai Elantra: Body Dimensions / Rear Body Body Repair

Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Body Dimensions / Rear Body Body Repair

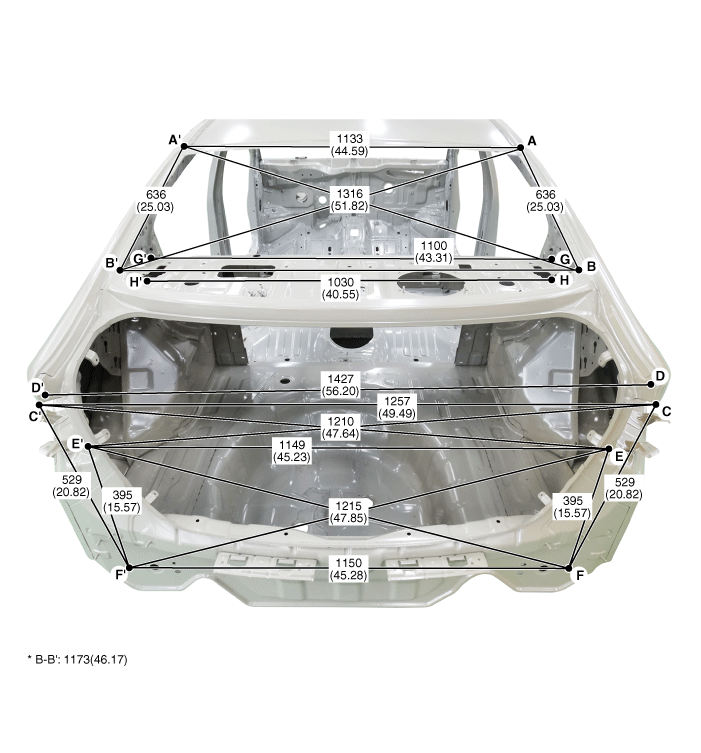

* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]


Side outer panel rear corner	Side outer panel rear corner	Side outer panel rear corner

Rear combination lamp mounting hole (O8)	Rear bumper mounting hole (8.5X8.5)	Rear bumper mounting hole (14X16)

Rear bumper mounting hole (14X16)	Rear seat belt mounting hole (O13)	Trunk lid hinge mounting hole (O12)
