Hyundai Elantra: Heater / Temperature Control Actuator Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Heating, Ventilation and Air Conditioning / Heater / Temperature Control Actuator Components and Components Location

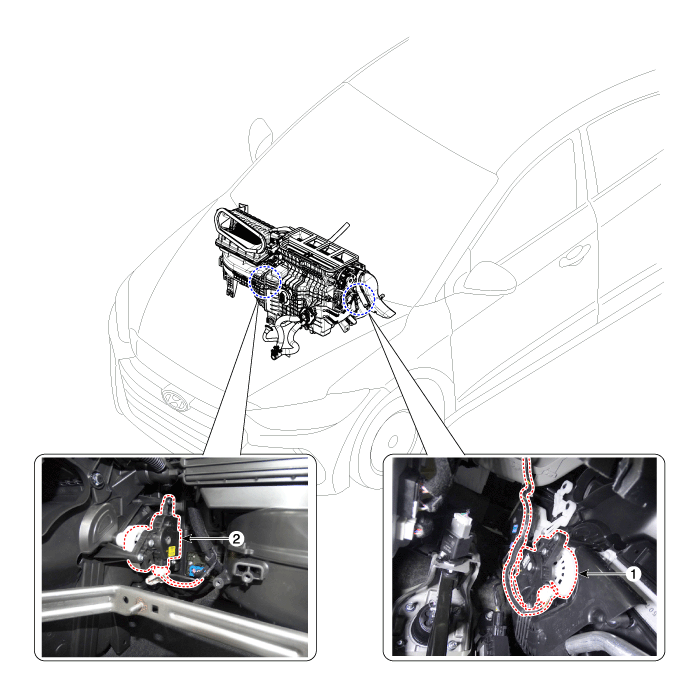

Components Location

1. Temperature control actuator [LH]
2. Temperature control actuator [RH]
