Hyundai Elantra: Crash Pad / Steering Column Shroud Panel Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Crash Pad / Steering Column Shroud Panel Components and Components Location

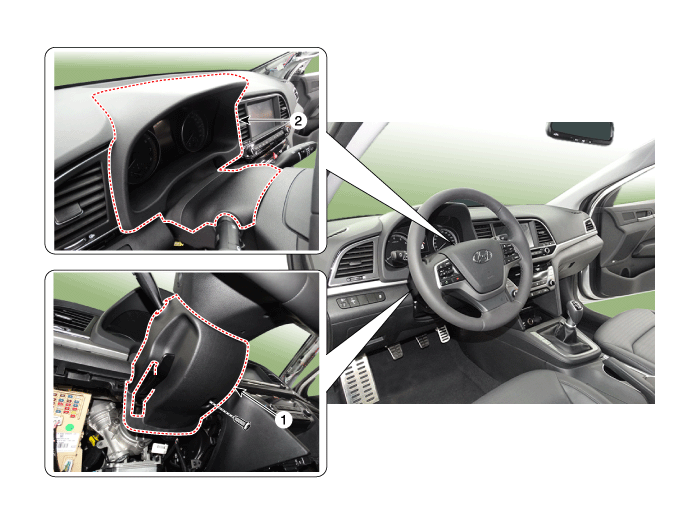

Component Location

1. Steering column shroud lower panel
2. Steering column shroud upper panel

Crash Pad Lower Panel Repair procedures
Replacement     • Put on gloves to prevent hand injuries.     • When removing with a flat-tip screwdriver or remover, wrap protective tape around ...

Steering Column Shroud Panel Repair procedures
Replacement [Steering column shroud lower panel]     • Put on gloves to prevent hand injuries.     • When removing with a flat-tip screwdriver or ...
