Hyundai Elantra AD (2016-2020) Service Manual / Engine Mechanical System / Cylinder Block / Components and Components Location

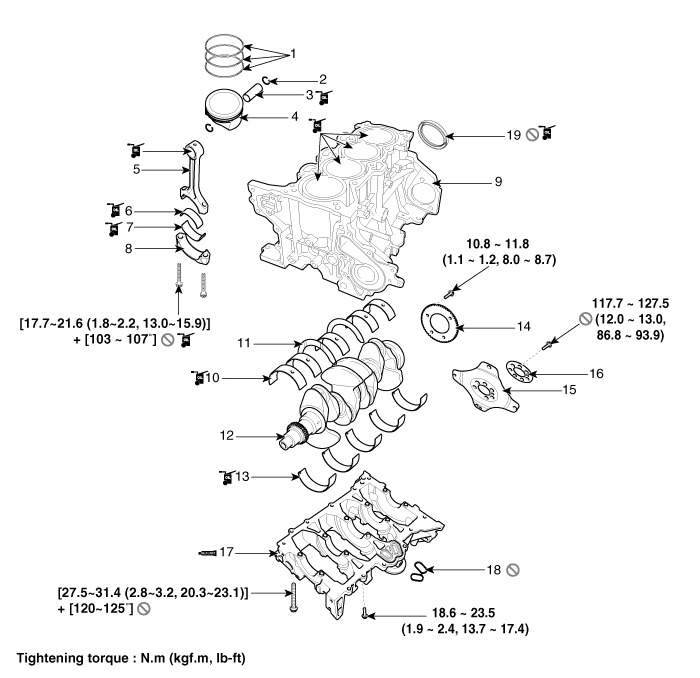

Components

1. Piston ring
2. Snap ring
3. Piston pin
4. Piston
5. Connecting rod
6. Connecting rod upper bearing
7. Connecting rod lower bearing

8. Connecting rod bearing cap
9. Cylinder block
10. Crankshaft upper bearing
11. Crankshaft thrust bearing
12. Crankshaft
13. Crankshaft lower bearing
14. Crankshaft position sensor (CKPS) wheel

15. Drive plate
16. Adapter plate
17. Lower crankcase
18. Gasket
19. Rear oil seal
