Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Trim Components and Components Location

Component Location

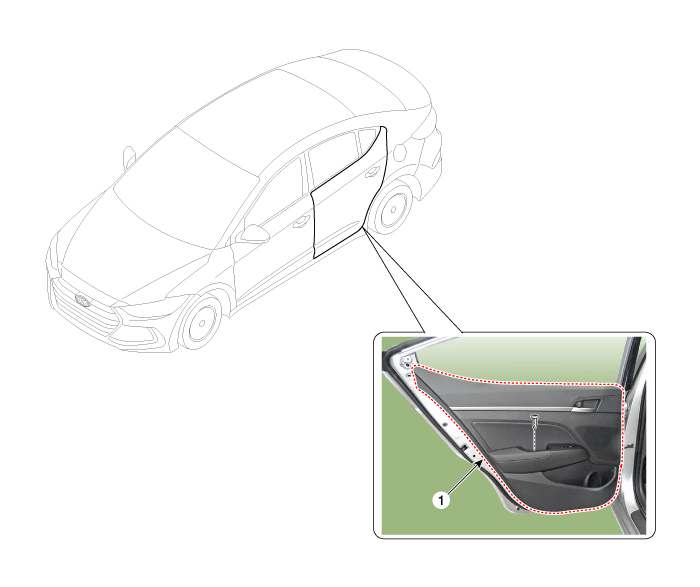

1. Rear door trim


Repair procedures
Adjustment Glass Adjustment     • Check the glass run channel for damage or deterioration, and replace them if necessary. 1. Remove the rear door trim. (Refer to Rea ...

Rear Door Trim Repair procedures
Replacement     • Put on gloves to prevent hand injuries.     • When removing with a flat-tip screwdriver or remover, wrap protective tape around ...

Other information:

Hyundai Elantra AD (2016-2020) Service Manual: Rear Shock Absorber Repair procedures
Removal 1. Loosen the wheel nuts slightly. 2. Raise the vehicle, and make sure it is securely supported. 3. Remove the rear wheel and tire (A) from front hub. Tightening torque : 107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)     • Be careful not t ...

Hyundai Elantra AD (2016-2020) Service Manual: Repair procedures
Adjustment Inspect Glass Alignment 1. Inspect the step height between the roof panel (A) and the glass weatherstrip (B) and then adjust it if necessary. Alignment adjustment Standard value [mm(in.)] (1) Front edge : 0 mm (0 in.) (2) Rear edge : 0 mm (0 in.) (3) Side edge : 0 mm (0 in. ...
