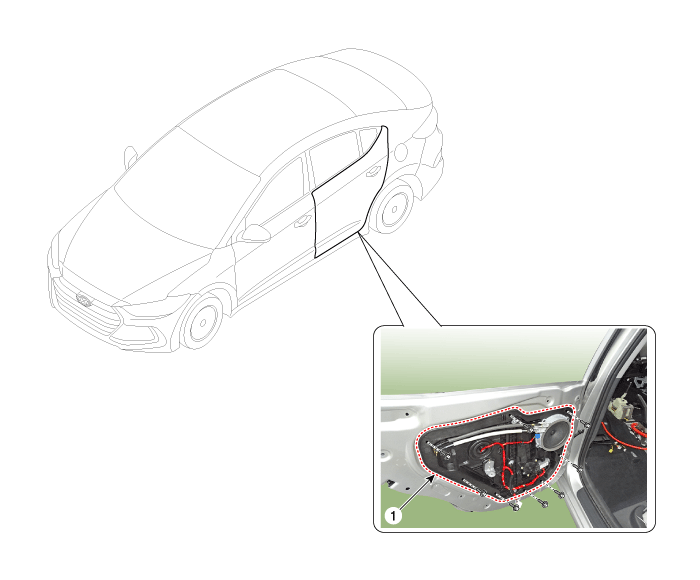

Component Location

1. Rear door module


Rear Door Window Glass Repair procedures
Replacement 1. Remove the rear door trim. (Refer to Rear Door - "Rear Door Trim") 2. Remove the rear door belt inside weatherstrip (A). 3. Pull down rear door window glass by pressing the ...

Rear Door Module Repair procedures
Replacement 1. Remove the rear door window glass. (Refer to Rear Door - "Rear Door Window Glass") 2. Remove the rear door outside handle. (Refer to Rear Door - "Rear Door Outside Handle") ...
