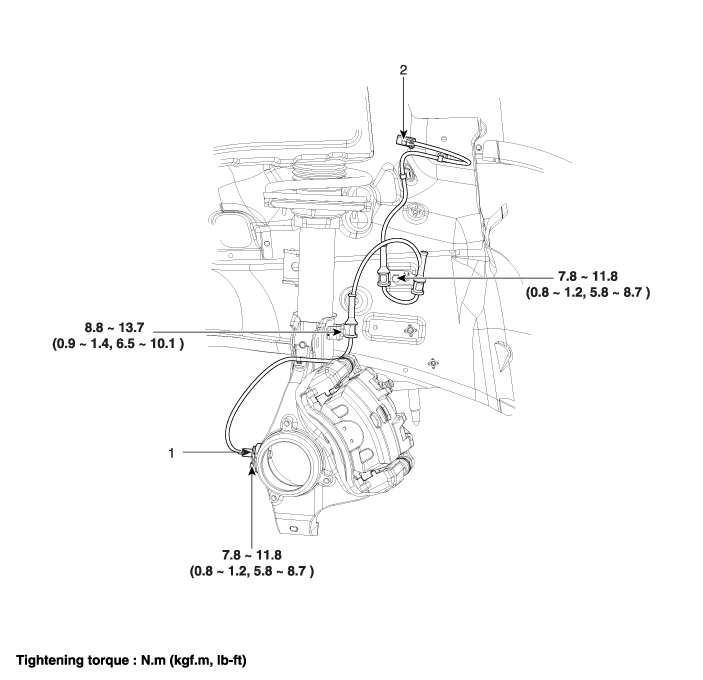

Components

1. Front wheel speed sensor
2. Front wheel speed sensor connector

ABS Control Module Repair procedures
Removal 1. Turn the ignition switch OFF and then disconnect the negative (-) battery cable. 2. Pull up the lock of the HECU connector (A) , then disconnect the connector. 3. Remove the bra ...

Front Wheel Speed Sensor Repair procedures
Removal 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel and tire (A) from front hub . Tightening torque: 107.9 ~ 12 ...
