Hyundai Elantra: Power Windows / Power Window Switch Schematic Diagrams

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / Power Windows / Power Window Switch Schematic Diagrams

Circuit Diagram

Driver Power Window Switch

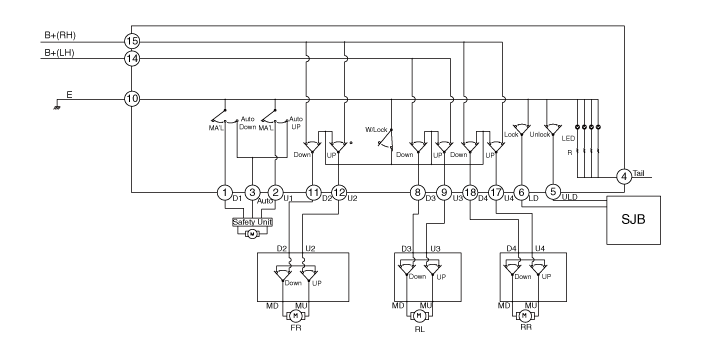

[Driver Power Window Switch (Safety)]

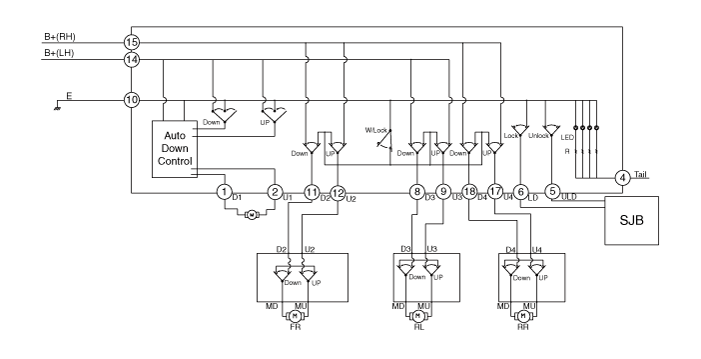

[Driver Power Window Switch (Auto Down)]

Assist Power Window Switch

Rear Power Window Switch

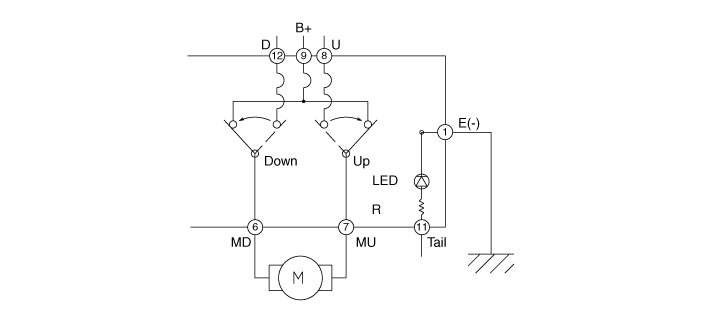

[Rear Power Window Switch (Manual)]

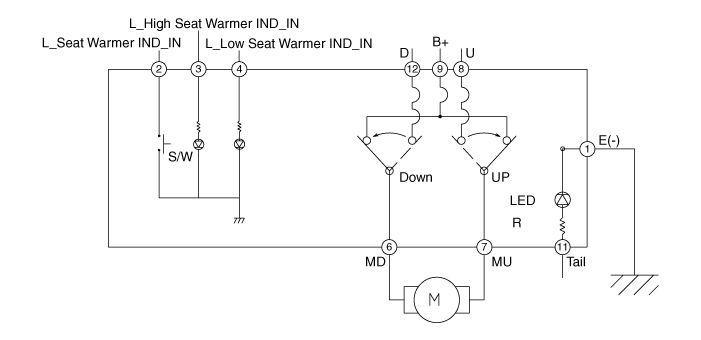

[Rear Power Window Switch (Manual + Seat Heater)]

Power Window Switch Components and Components Location

Components [Driver Power Window Switch] [Assist Power Window Switch] [Rear Power Window Switch] ...

Power Window Switch Repair procedures

Inspection [Driver Power Window Switch] 1. Disconnect the negative (-) battery terminal. 2. Remove the driver door trim. (Refer to Body - "Front Door Trim") 3. Disconnect the power mirro ...
