Hyundai Elantra: Power Windows / Power Window Switch Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / Power Windows / Power Window Switch Components and Components Location

Components
[Driver Power Window Switch]

[Assist Power Window Switch]

[Rear Power Window Switch]

Power Window Motor Repair procedures
Inspection     • Wrap the protective tape on the tool to disassemble with the screwdriver or remover. • Use caution in keeping and handling during disassembling/asse ...

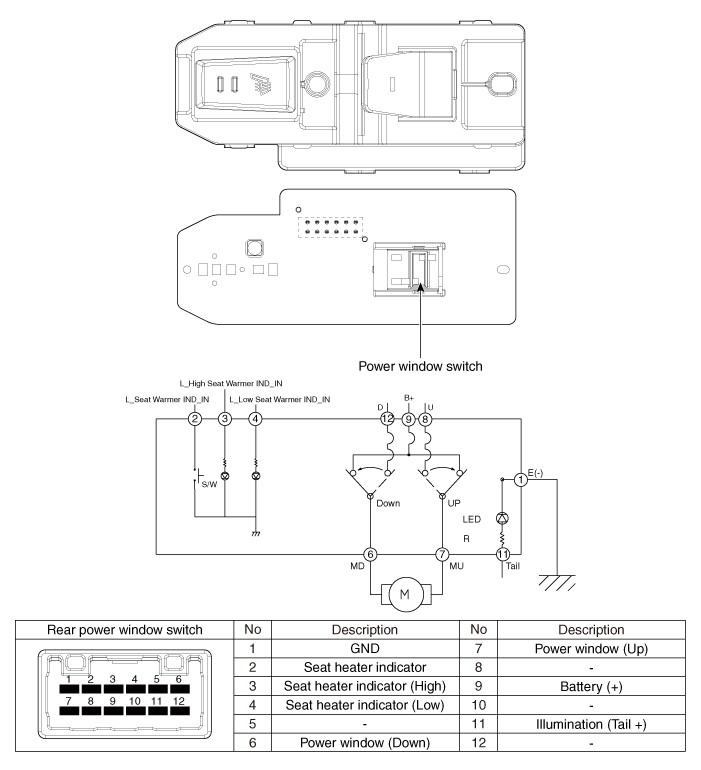

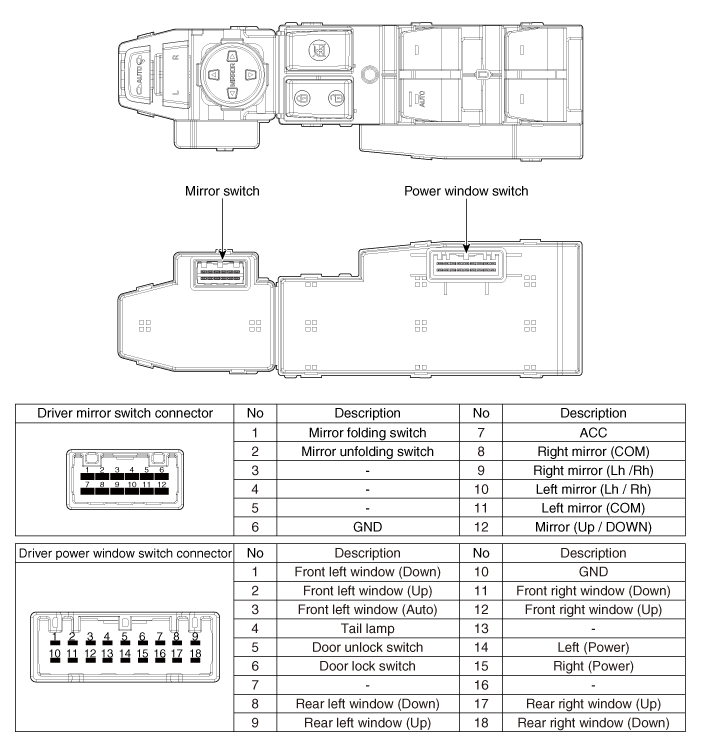

Power Window Switch Schematic Diagrams
Circuit Diagram Driver Power Window Switch [Driver Power Window Switch (Safety)] [Driver Power Window Switch (Auto Down)] Assist Power Window Switch Rear Power Window Switch [Rear Power Wi ...
