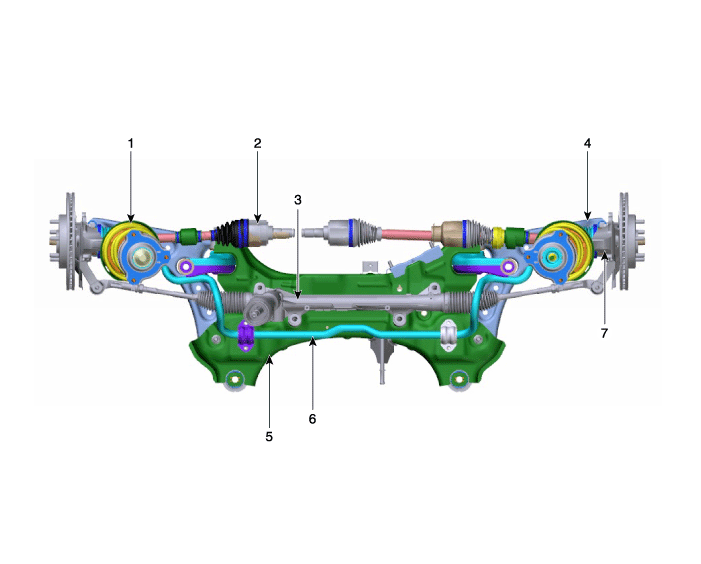

Components Location

1. Front strut assembly
2. Drive shaft
3. Steering gearbox
4. Lower arm

5. Sub frame
6. Stabilizer bar
7. Front knuckle assembly

Front Suspension System

...

Front Strut Assembly Components and Components Location

Components 1. Strut assembly2. Lock nut3. Insulator 4. Strut bearing & Spring upper pad5. Bumper rubber6. Dust cover7. Coli spring8. Spring lower pad ...
