Hyundai Elantra: IMS(Integrated Memory System) / Memory power seat switch Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / IMS(Integrated Memory System) / Memory power seat switch Components and Components Location

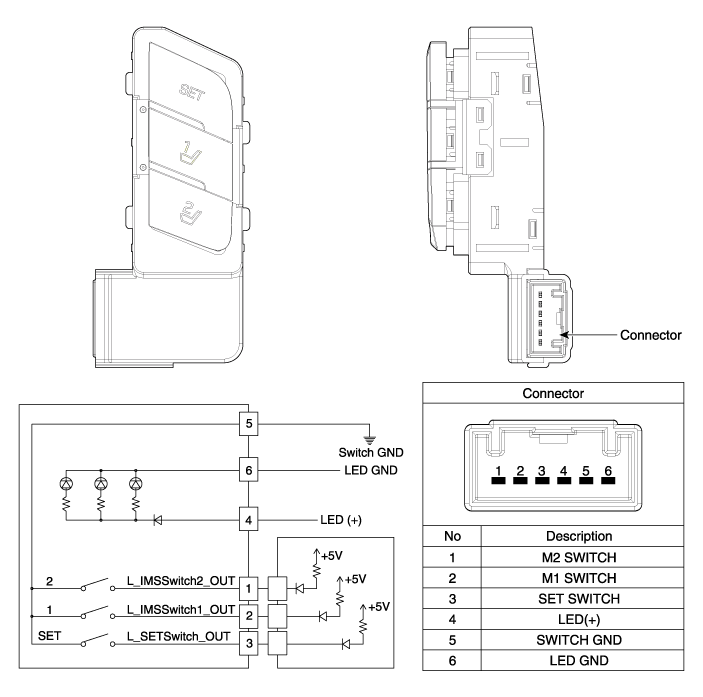

Components

Memory power seat unit Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the driver seat assembly. (Refer to Body - "Front Seat Assembly") 3. Loosening the IMS unit mounting screws. 4. Disc ...

Memory power seat switch Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the driver door trim. (Refer to Body - "Front Door Trim") 3. Disconnect the memory power seat switch connector (A). 4 ...
