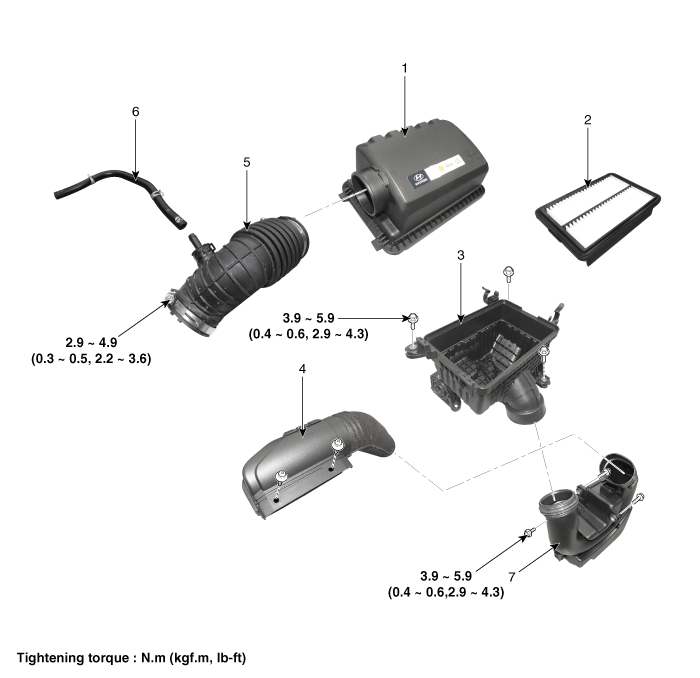

Components

1. Air cleaner cover
2. Air cleaner element
3. Air cleaner body
4. Air duct

5. Air intake hose
6. Breather hose
7. Resonator

Air Cleaner Repair procedures

Removal and Installation Air Cleaner Assembly 1. Remove the engine cover. (Refer to Engine And Transaxle Assembly - “Engine Cover”) 2. Disconnect the battery negative terminal. 3. Re ...
