Hyundai Elantra: ABS(Anti-Lock Brake System) / Rear Wheel Speed Sensor Components and Components Location

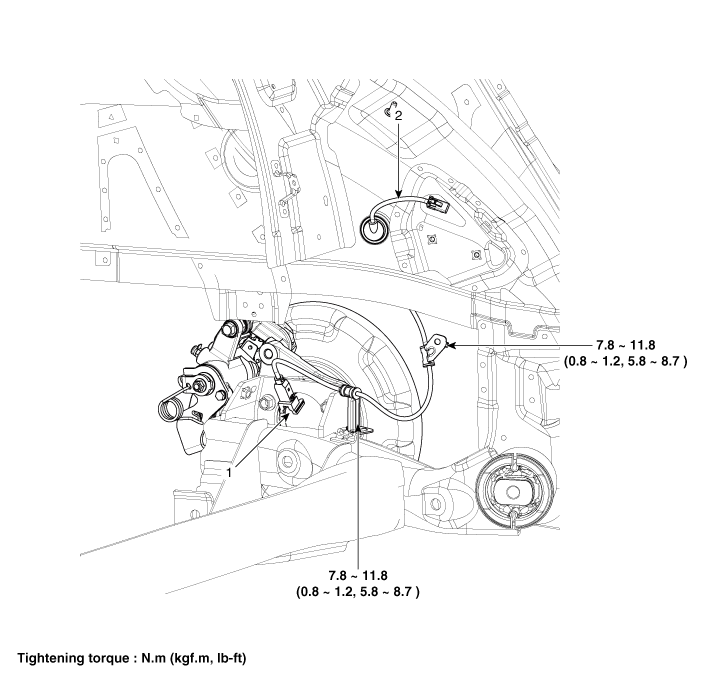

| Components |
| 1. Front wheel speed sensor | 2. Front wheel speed sensor cable |
Front Wheel Speed Sensor Repair procedures
Removal
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.
Remove the front wheel and tire (A) from front hub .
Tightening torque:
107.9 ~ 12 ...
Rear Wheel Speed Sensor Repair procedures
Removal
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.
Remove the rear wheel and tire (A) from front hub .
Tightening torque:
107.9 ~ 127 ...
Other information:
Hyundai Elantra AD (2016-2020) Service Manual: Heated Oxygen Sensor (HO2S) Specifications
Specification
HO2S [Bank 1/Sensor 1] (Linear type)
ItemSpecificationHeater Resistance (?)2.4 ~ 4.0 [20°C(68°F)]
HO2S [Bank 1/Sensor 2] (Binary type)
A/F Ratio (?)Output Voltage(V)RICH0.6 ~ 1.0LEAN0 ~ 0.4
ItemSpecificationHeater Resistance (?)Approx. 9.0 [20°C(68°F)]
...
