Hyundai Elantra: Heating and Air Conditioning / MAX A/C-Level (B, D)

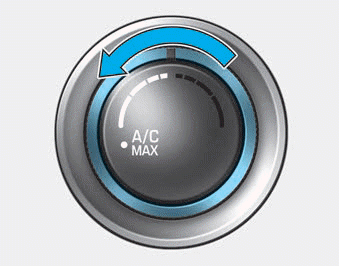

The MAX A/C mode is used to cool the inside of the vehicle faster. Air flow is directed toward the upper body and face.
In this mode, the air conditioning and the recirculated air position cannot be selected. Turn the fan speed mode to adjust.
Mode selection
The mode selection knob controls the direction of the air flow through the ventilation
system.
Air can be directed to the floor, dashboard outlets, or windshield. Five symbols
are used to repre ...
Instrument panel vents
The instrument panel vent air flow can be directed up/down or left/right using
the vent adjustment lever.
The air flow can also be closed using the vent adjustment lever. To close the
instrumen ...
