Hyundai Elantra: Convenient Features of Your Vehicle / Manual Climate Control System

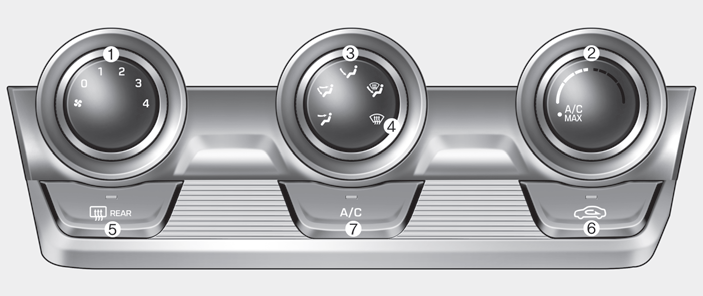

1. Fan speed control knob
2. Temperature control knob
3. Mode selection knob
4. Front windshield defroster position
5. Rear window defroster button
6. Air intake control button
7. A/C (Air conditioning) button
Defroster
NOTICE
To prevent damage to the conductors bonded to the inside surface of the rear
window, never use sharp instruments or window cleaners containing abrasives to clean
the window.
If you want t ...
Heating and Air Conditioning
1. Start the engine.
2. Set the mode to the desired position. To improve the effectiveness of heating
and cooling : - Heating: - Cooling:
3. Set the temperature control to the desired position. ...
