Hyundai Elantra: Heating and Air Conditioning / Instrument panel vents

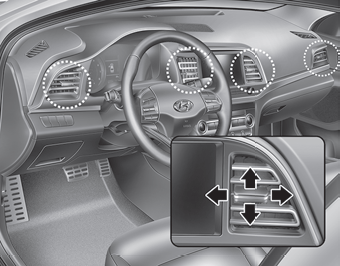

The instrument panel vent air flow can be directed up/down or left/right using the vent adjustment lever.
The air flow can also be closed using the vent adjustment lever. To close the instrument panel vents, slide the vent adjustment lever to the LEFT until it clicks.
MAX A/C-Level (B, D)
The MAX A/C mode is used to cool the inside of the vehicle faster. Air flow is
directed toward the upper body and face.
In this mode, the air conditioning and the recirculated air position cannot ...
Temperature control
The temperature will increase by turning the knob to the right.
The temperature will decrease by turning the knob to the left. ...
