Hyundai Elantra: Heating and Air Conditioning / Mode selection

Hyundai Elantra. Mode selection

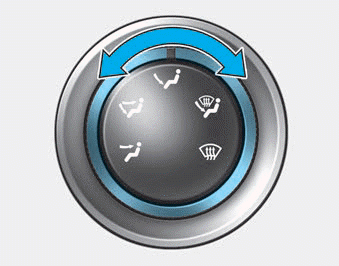

The mode selection knob controls the direction of the air flow through the ventilation system.

Air can be directed to the floor, dashboard outlets, or windshield. Five symbols are used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost air position.

Face-Level (B, D)

Hyundai Elantra. Mode selection

Air flow is directed toward the upper body and face. Additionally, each outlet can be controlled to direct the air discharged from the outlet.

Bi-Level (B, D, C, E)

Hyundai Elantra. Mode selection

Air flow is directed towards the face and the floor.

Floor-Level (A, C, D, E)

Hyundai Elantra. Mode selection

Most of the air flow is directed to the floor, with a small amount of the air being directed to the windshield, side window defrosters, and side vents.

Floor & Defrost (A, C, D, E)

Hyundai Elantra. Mode selection

Most of the air flow is directed to the floor and the windshield with a small amount directed to the side window defrosters, and side vents.

Defrost-Level (A, D)

Hyundai Elantra. Mode selection

Most of the air flow is directed to the windshield with a small amount of air directed to the side vents.

Heating and Air Conditioning
1. Start the engine. 2. Set the mode to the desired position. To improve the effectiveness of heating and cooling : - Heating: - Cooling: 3. Set the temperature control to the desired position. ...

MAX A/C-Level (B, D)
The MAX A/C mode is used to cool the inside of the vehicle faster. Air flow is directed toward the upper body and face. In this mode, the air conditioning and the recirculated air position cannot ...
