Description and Operation
Electric Thermostat (ECT)
Overview

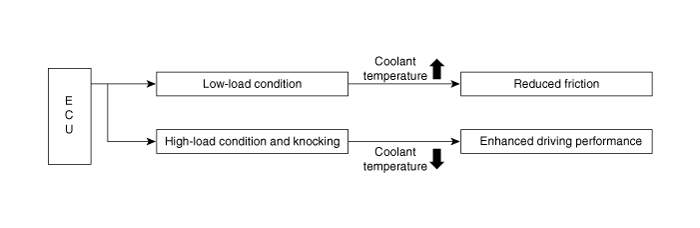

Optimal control of coolant temperature depending on the driving conditions

Operation Principle

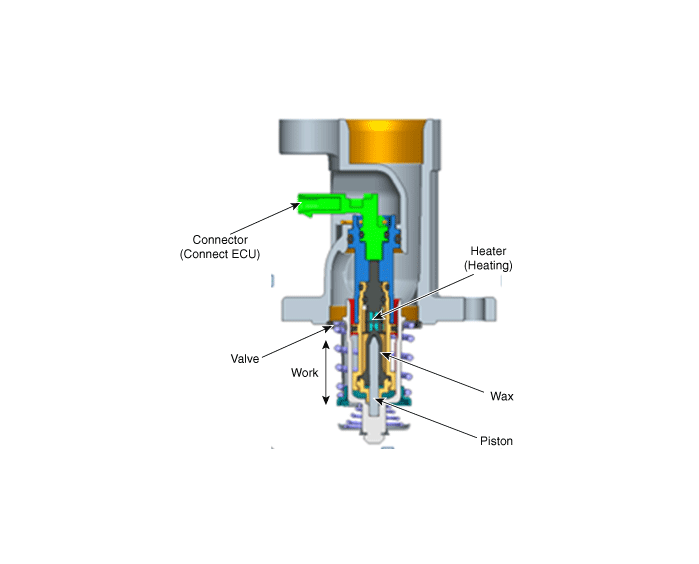

Electric Thermostat Structure

Water pump Troubleshooting
Troubleshooting SymptomsPossible CausesRemedyCoolant leakage • From the bleed hole of the water pump Visually check • Check leaks after about ten-minute warming up. • If cool ...

Electric Thermostat (ECT) Schematic Diagrams
Circuit Diagram ...
