Component Location

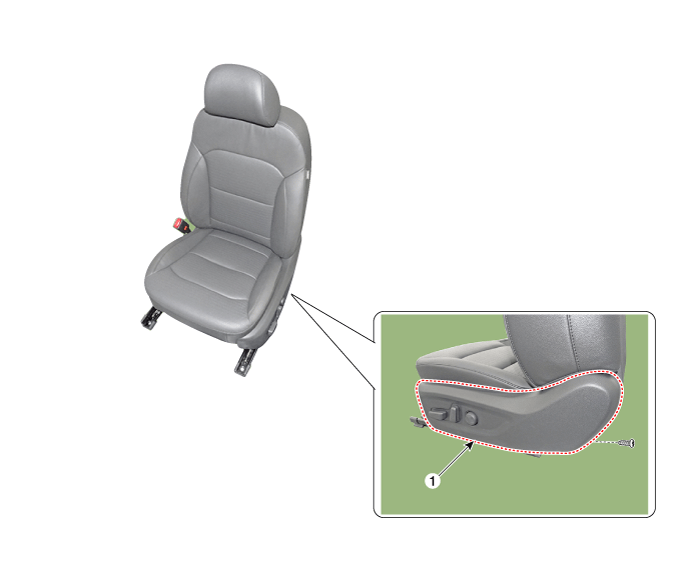

1. Front seat shield outer cover


Front Seat Assembly Repair procedures
Replacement 1. Open the cover and loosen the front seat mounting bolts. [Front] Tightening torque : 49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2~ 47.0 lb-ft) [Rear] Tightening torque : 49.0 ...

Front Seat Shield Outer Cover Repair procedures
Replacement     • Put on gloves to prevent hand injuries.     • When removing with a flat-tip screwdriver or remover, wrap protective tape around ...
