Hyundai Elantra: Front Seat Belt / Front Seat Belt Pretensioner Components and Components Location
| Component Location |

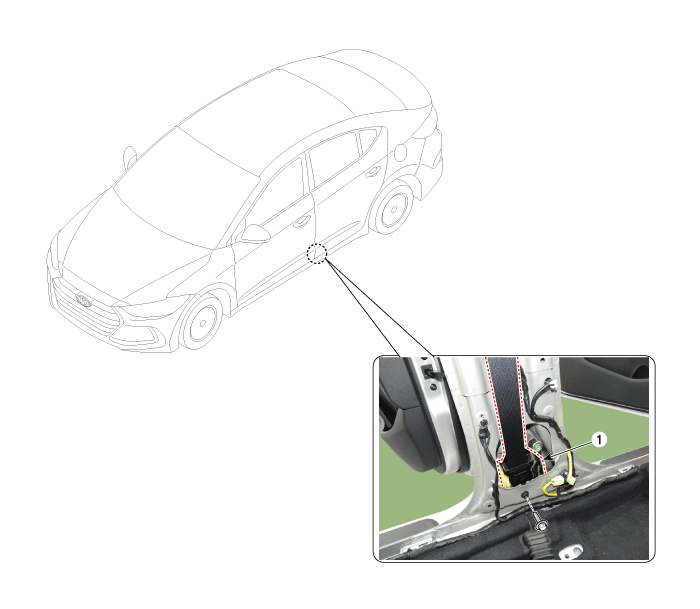

| 1. Front seat belt pretensioner |
Components and Components Location
Components
1. Height adjust 2. Front seat belt pretensioner / EFD system 3. Anchor pretensioner
...
Front Seat Belt Pretensioner Repair procedures
Replacement
•
When installing the belt, make sure not to damage the pretensioner.
1.
Remove the center pillar upper trim.
(Refer to Interior Trim - "Center Pillar ...
