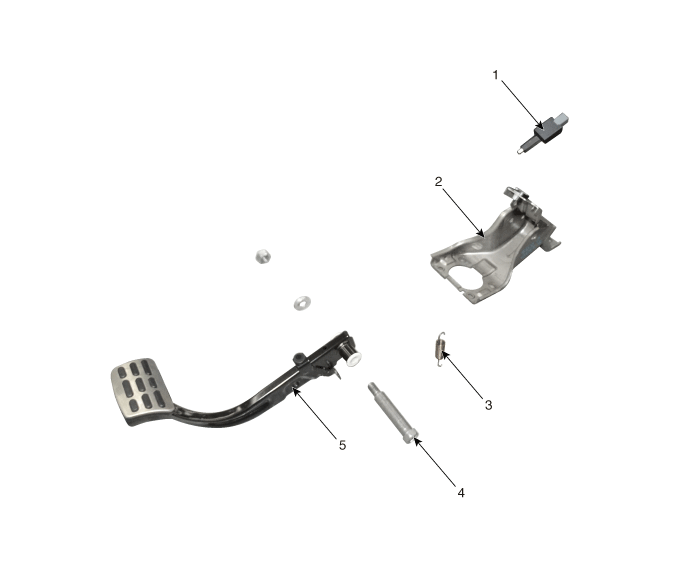

Components

1. Stop lamp switch
2. Brake pedal member assembly
3. Return spring
4. Bolt
5. Brake pedal arm assembly

Rear Drum Brake Repair procedures
Removal     • Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health. • Avoid breathing dust particles. †...

Stop Lamp Switch Schematic Diagrams
Schematic Diagram System circuit diagram Terminal function TeminalDescription1IGN12Engine Control Module (ECM)3B+4Stop Lmap ...
