Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Floor Console / Floor Console Assembly Components and Components Location

Component Location

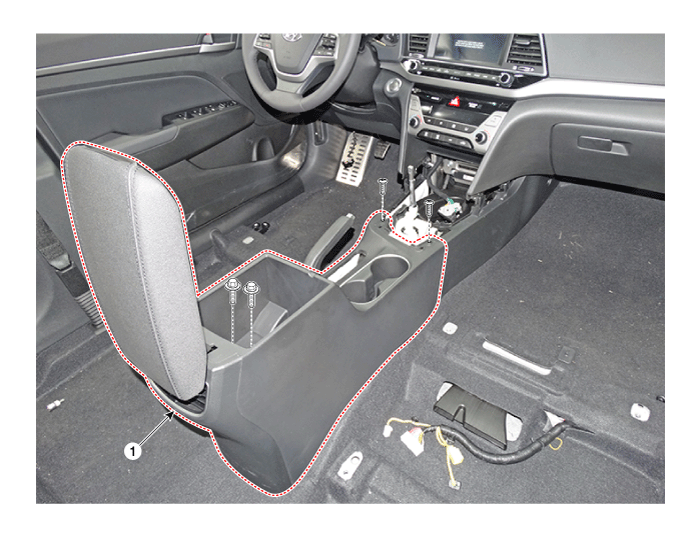

1. Floor console assembly


Components and Components Location
Components [M/T] 1. Floor console assembly 2. Console tray mat3. Parking brake cover4. Console garnish assembly 5. Console upper complete assembly 6. Front console side cover [LH]7. Front cons ...

Floor Console Assembly Repair procedures
Replacement [M/T]     • Put on gloves to prevent hand injuries.     • When removing with a flat-tip screwdriver or remover, wrap protective tap ...
