Hyundai Elantra: Crash Pad / Crash Pad Side Cover Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Side Cover Components and Components Location

Component Location

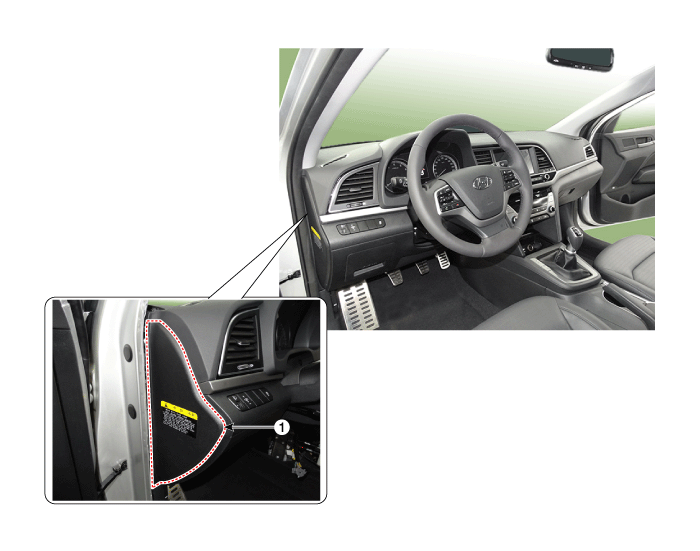

[LH]

1. Crash pad side cover [LH]

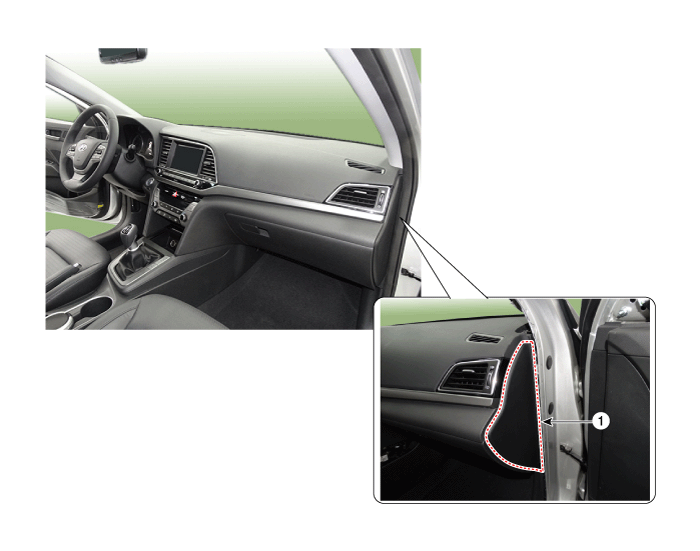

[RH]

1. Crash pad side cover [RH]
