Hyundai Elantra: Blind Spot Detection System / Blind Spot Detection Indicator Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / Blind Spot Detection System / Blind Spot Detection Indicator Components and Components Location

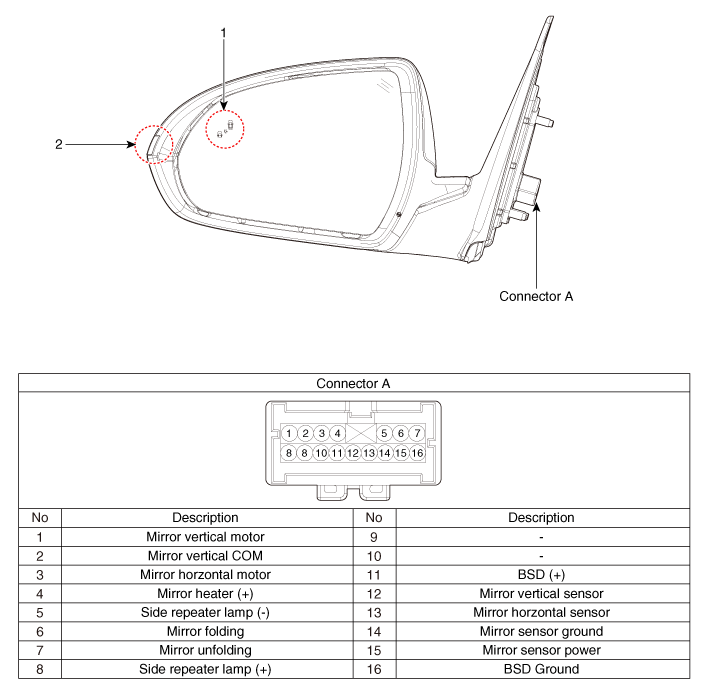

Components

1. BSD Indicator
2. Side repeater lamp

Blind Spot Detection Switch Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") 3. Remove the lower crash pad switch assembly (A ...

Blind Spot Detection Indicator Repair procedures
Removal Blind Spot Detection Warnig Indicator 1. Disconnect the negative (-) battery terminal. 2. Remove the mirror (A). Installation Blind Spot Detection Warnig Indicator 1. Install th ...
