Hyundai Elantra: Body Electrical System / Auto Lighting Control System
- Specifications

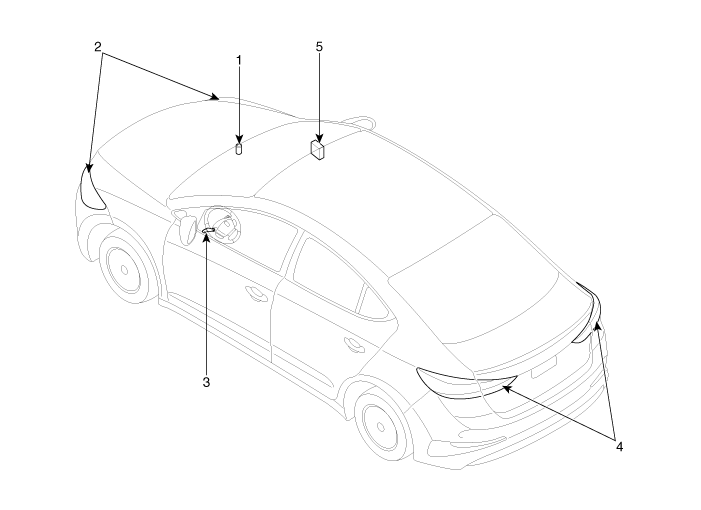

- Components and Components Location

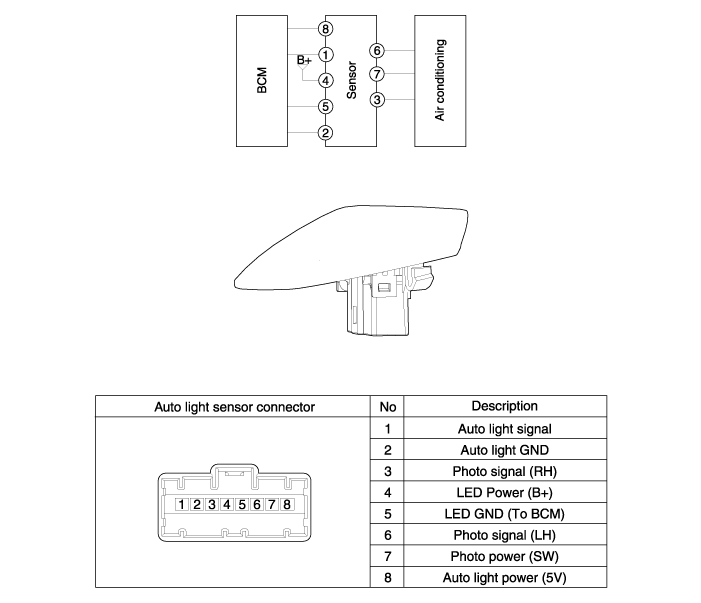

- Schematic Diagrams
- Description and Operation
- Auto Light Sensor Repair procedures
Rear Combination Lamp Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the outside rear combination lamp assembly (B) after disconnecting the connector (A).
3.
Remove the bulb (A) after turnin ...
Specifications
Specifications
ItemsSpecificationsRated voltage5VLoadMax. 1mA (Relay load)Illuminations (LUX)501.42 ± 0.31V1002.63 ± 0.58V1503.84 ± 0.84V
...
