Hyundai Elantra: Auto Lighting Control System / Components and Components Location
Hyundai Elantra AD (2016-2020) Service Manual / Body Electrical System / Auto Lighting Control System / Components and Components Location

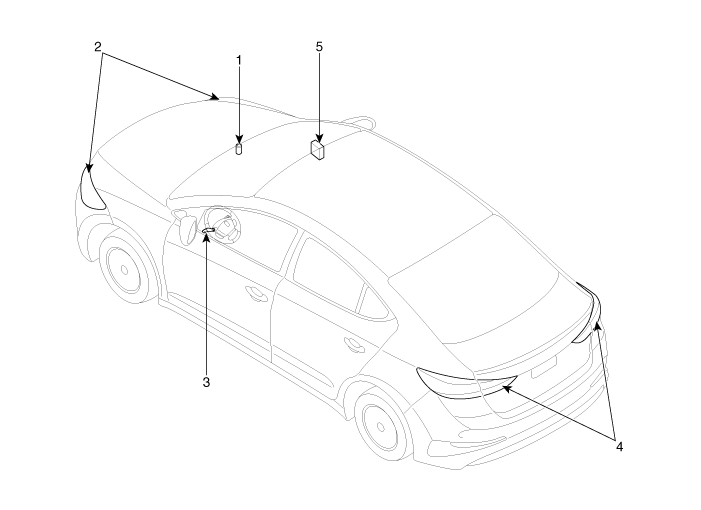

| Component Location |
| 1. Auto light sensor 2. Head lamps 3. Lighting switch (Auto) | 4. Tail lamps 5. BCM (Body Control Module) |
Specifications
Specifications
ItemsSpecificationsRated voltage5VLoadMax. 1mA (Relay load)Illuminations (LUX)501.42 ± 0.31V1002.63 ± 0.58V1503.84 ± 0.84V
...
Schematic Diagrams
Circuit Diagram
...
