Hyundai Elantra: LCD Display Modes / User settings mode

Hyundai Elantra. User settings mode

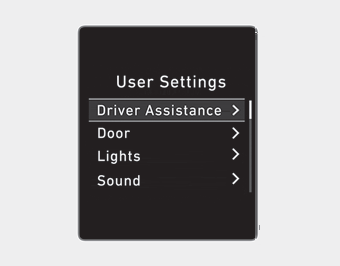

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

1. Driver Assistance
2. Door
3. Lights
4. Sound
5. Convenience
6. Service interval
7. Other
8. Language
9. Reset

The information provided may differ depending on which functions are applicable to your vehicle.

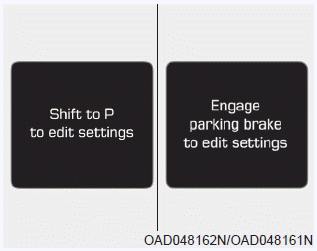

Shift to P to edit settings/Engage parking brake to edit settings

Hyundai Elantra. User settings mode

This warning message appears if you try to adjust the User Settings while driving.

Quick guide help

This mode provides quick guides for the systems in the User Settings mode.

Select an item, press and hold the OK button.

For more details, about each system, refer to this Owner's Manual.

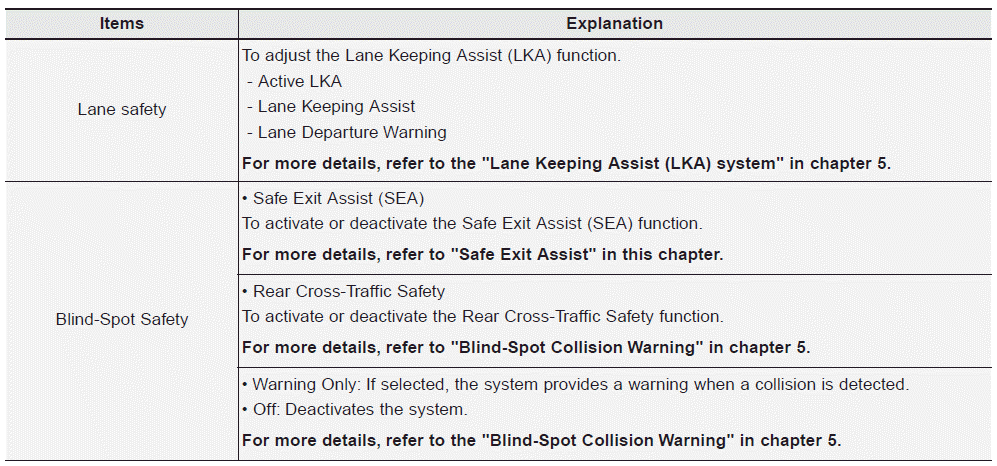

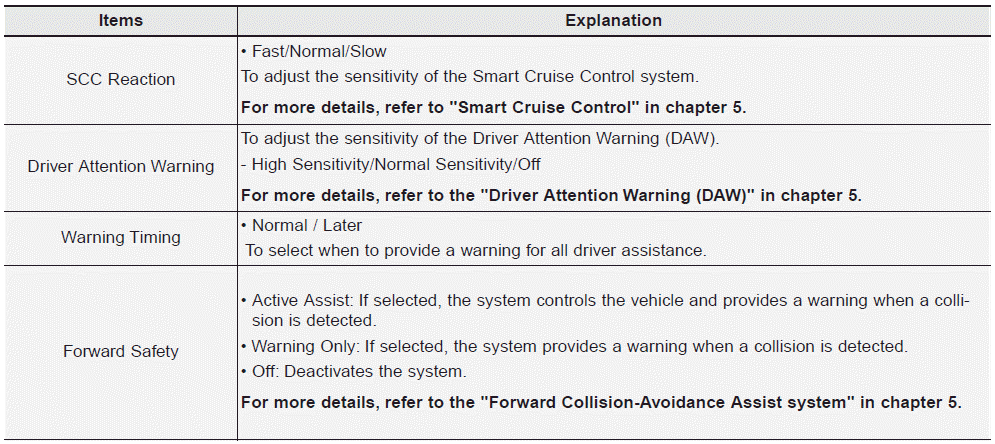

Driver Assistance

Hyundai Elantra. User settings mode

❈The information provided may differ depending on which functions are applicable to your vehicle.

Driver Assistance

Hyundai Elantra. User settings mode

❈The information provided may differ depending on which functions are applicable to your vehicle.

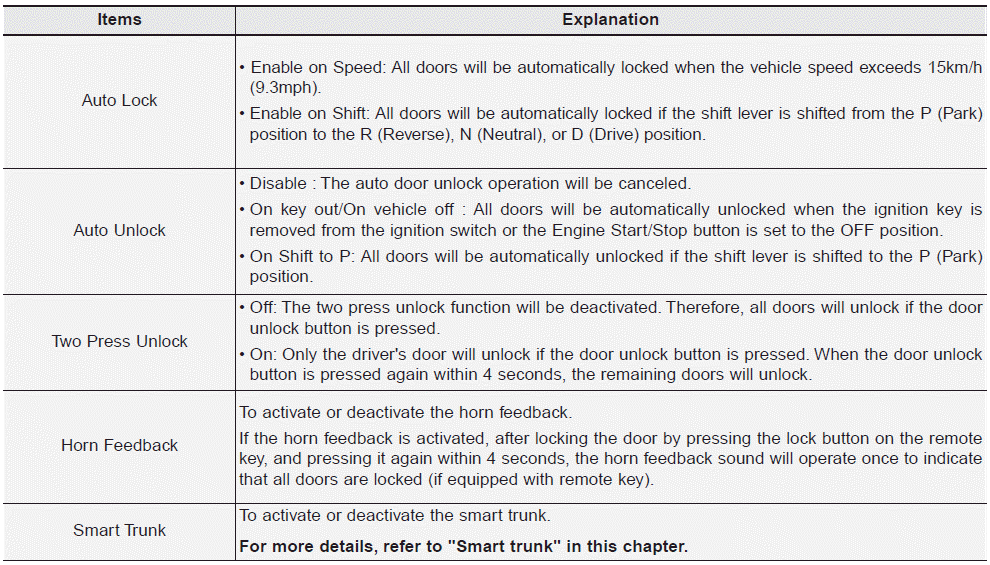

Door

Hyundai Elantra. User settings mode

❈The information provided may differ depending on which functions are applicable to your vehicle.

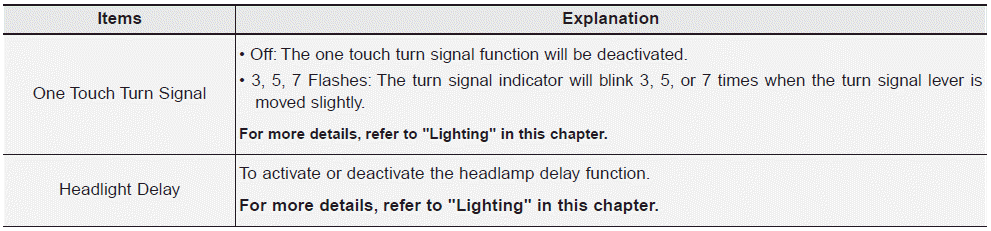

Lights

Hyundai Elantra. User settings mode

Sound

Hyundai Elantra. User settings mode

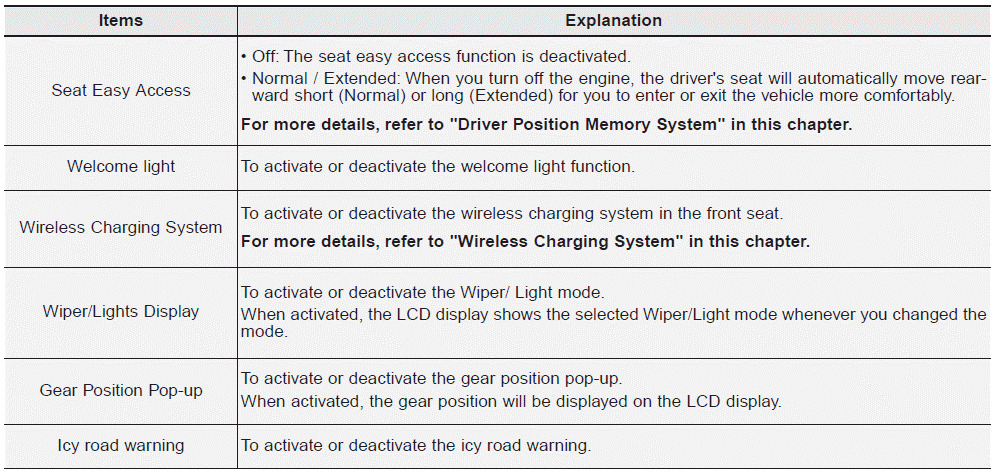

Convenience

Hyundai Elantra. User settings mode

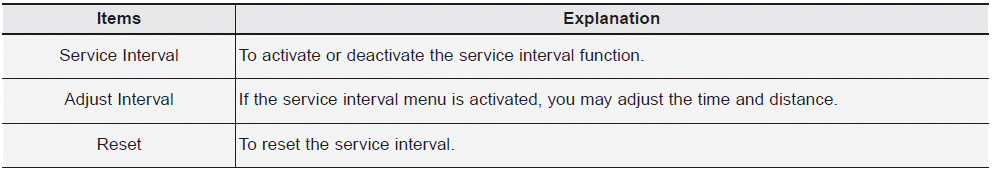

Service interval

Hyundai Elantra. User settings mode

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

- Service in: Displayed to inform the driver the remaining mileage and days to service.БЮ - Service required: Displayed when the mileage and days to service has been reached or passed.

Information

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.

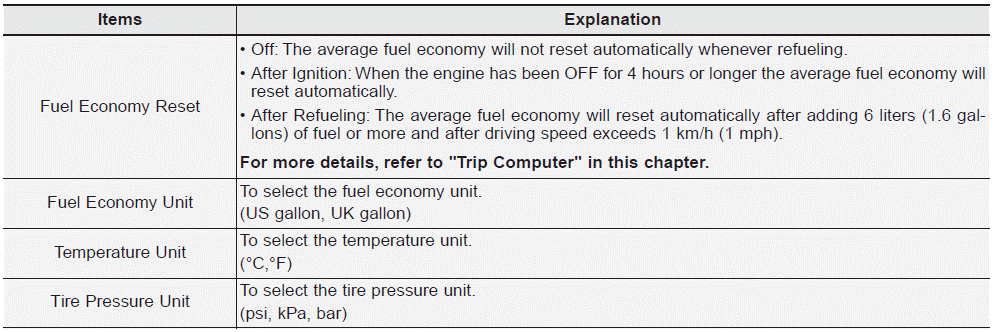

Other

Hyundai Elantra. User settings mode

Language

Hyundai Elantra. User settings mode

Reset

You can reset the menus in the User Settings Mode. All menus in the User Settings Mode are reset to factory settings, except language and service interval.
