Hyundai Elantra: Trunk Lid / Trunk Lid Assembly Repair procedures

Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Trunk Lid / Trunk Lid Assembly Repair procedures

Replacement

•	Put on gloves to prevent hand injuries.

•	When removing and installing the trunk lid, an assistant is necessary .

•	Be careful not to damage the trunk lid and body surface.

1.	Remove the trunk lid trim. (Refer to Trunk Lid - "Trunk Lid Trim")

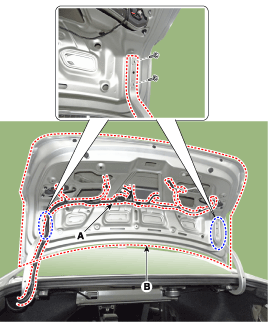

2.	Disconnect the connectors and trunk lid wiring harness (A).

After loosening the mounting bolts, remove the trunk lid assembly (B).

Tightening torque :

21.6 ~ 26.5 N.m (2.2 ~ 2.7 kgf.m, 15.9 ~ 19.5 lb-ft)

To intall, reverse the removal procedure.

•	Make sure the trunk lid locks / unlocks and opens / closes properly.

•	Adjust the trunk lid as necessary.

•	Make sure the connectors are connected in properly.

•	Replace any damaged clips.
