Components

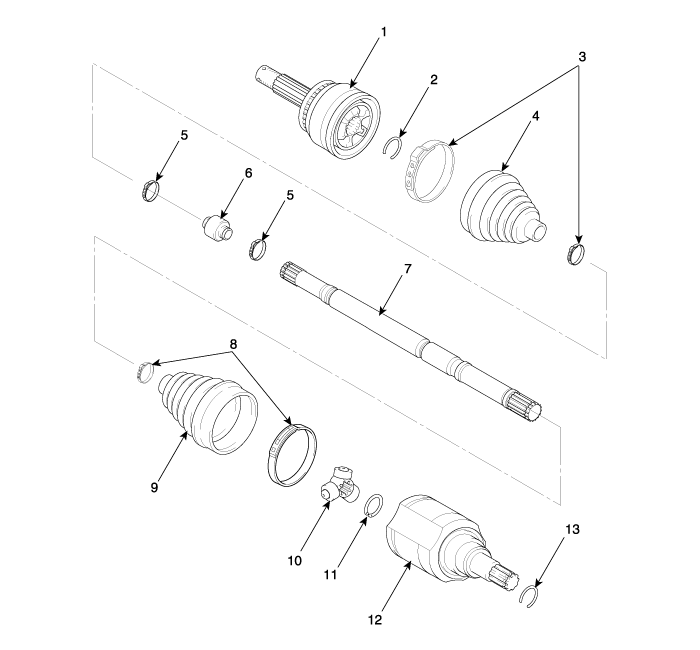

[RH]

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band

6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot

10. Spider assembly
11. Snap ring
12. TJ case
13. Clip

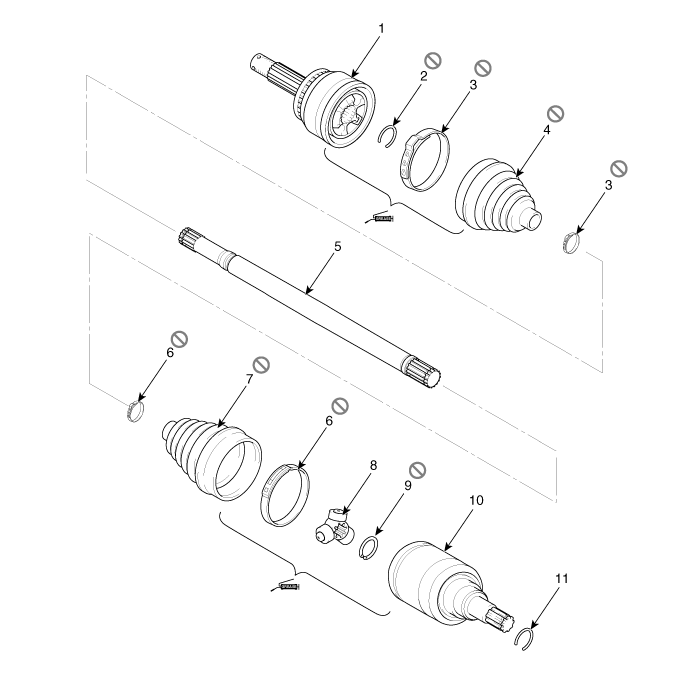

[LH]

1. BJ assembly
2. Circlip
3. BJ boot band
4. BJ boot

5. Shaft
6. TJ boot band
7. TJ boot
8. Spider assembly

9. Snap ring
10. TJ Case
11. Clip

Dynamic Damper Repair procedures

Removal 1. Remove the front driveshaft. (Refer to Driveshaft Assembly - "Front Driveshaft") 2. Remove the TJ joint assembly. (Refer to Driveshaft Assembly - "TJ Joint") 3. Remove the r ...

TJ Joint Repair procedures

Disassembly • Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease. • The boot band should be replaced with a ne ...
