Hyundai Elantra: Timing System / Timing Chain Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Engine Mechanical System / Timing System / Timing Chain Components and Components Location

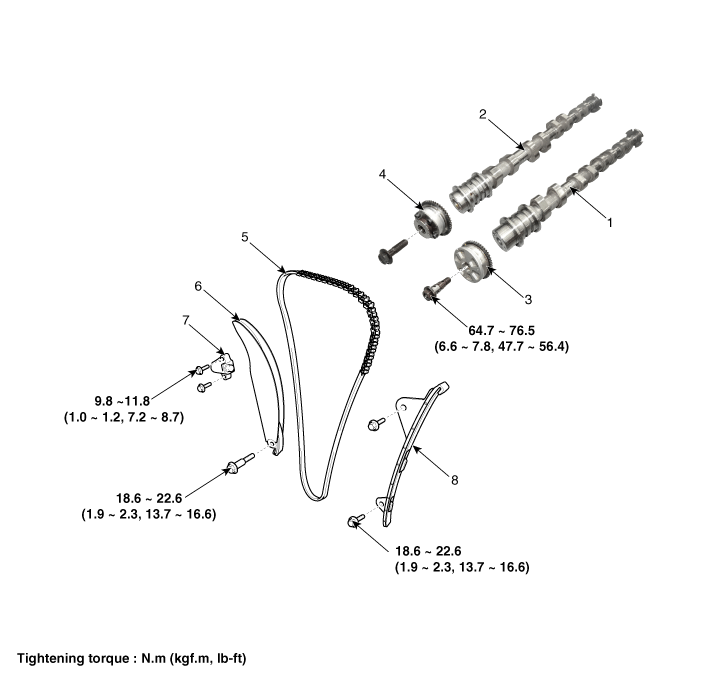

Components

1. Intake camshaft
2. Exhaust camshaft
3. Intake CVVT assembly
4. Exhaust CVVT assembly
5. Timing chain
6. Timing chain tensioner arm
7. Timing chain tensioner
8. Timing chain guide

Timing Chain Cover Repair procedures
Removal Engine removal is not required for this procedure.     • Use fender covers to avoid damaging painted surfaces. • To avoid damage, unplug the wiring connector ...

Timing Chain Repair procedures
Removal 1. Remove the cylinder head cover. (Refer to Cylinder Head Assembly - "Cylinder Head Cover") 2. Set No.1 cylinder to TDC (Top dead center) on compression stroke. (1) Turn the cranks ...
