Hyundai Elantra: Convenient Features of Your Vehicle / Wipers and Washers

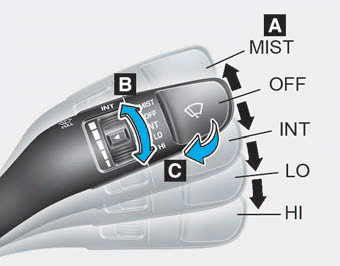

A : Wiper speed control
· MIST – Single wipe
· OFF – Off
· INT – Intermittent wipe
· LO – Low wiper speed
· HI – High wiper speed
B : Intermittent control wipe time adjustment

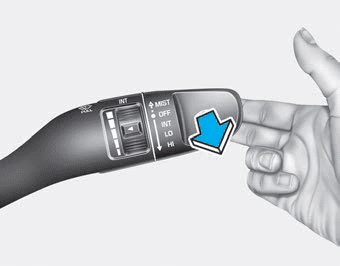

C :Wash with brief wipes
Welcome System
Welcome light
Door handle lamp (if equipped)
When all the doors (and trunk) are closed and locked, the door handle lamp will
come on for about 15 seconds if any of the below is performed.
Wh ...
Windshield Wipers
Operates as follows when the ignition switch is in the ON position.
MIST : For a single wiping cycle, push the lever upward and release. The wipers
will operate continuously if the lever is held in ...
