Hyundai Elantra: Automatic Transaxle Control System / Torque Converter Control Solenoid Valve (T/CON_VFS) Components and Components Location

Hyundai Elantra AD (2016-2020) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Torque Converter Control Solenoid Valve (T/CON_VFS) Components and Components Location

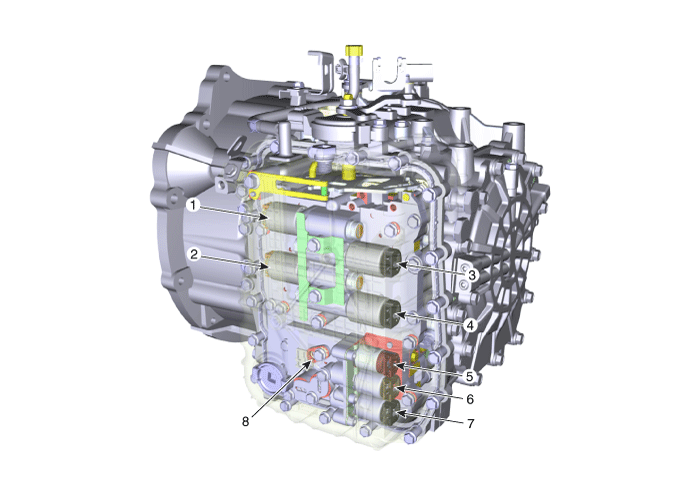

Components Location

1. 26 Brake Control Solenoid Valve (26/B)
2. 35R Clutch Control Solenoid Valve (35R/C)
3. Underdrive Brake Control Solenoid Valve (UD/B)
4. Overdrive Clutch Control Solenoid Valve (OD/C)

5. SS-A Solenoid Valve (ON/OFF)
6. Torque Converter Control Solenoid Valve (T/CON)
7. Line Pressure Control Solenoid Valve
8. Oil temperature sensor

Torque Converter Control Solenoid Valve (T/CON_VFS) Specifications
Specifications ? Control type : Normally low type ShapeItems Specifications Control current(voltage) [mA] 0 ~ 850 Supply pressure [kpa (kgf/cm?, psi)] 539.36 (5.5, 78.23) Control ...

Torque Converter Control Solenoid Valve (T/CON_VFS) Schematic Diagrams
Circuit Diagram ...
