System setting

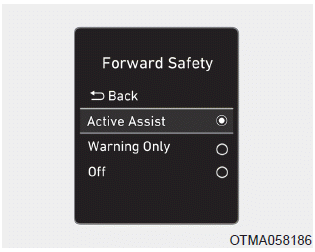

• Setting Forward Safety function
The driver can activate the FCA by placing the ignition switch to the ON position and by selecting:
'User Settings → Driver Assistance → Forward Safety'
- If you select "Active Assist", the FCA system activates. The FCA produces warning
messages and warning alarms in accordance with the collision risk levels. Braking
assist will be applied in accordance with the collision risk.
- If you select "Warning Only", the FCA system activates and produces only warning
alarms in accordance with the collision risk levels. Braking assist will not be
applied in this setting.
- If you select "Off", the FCA system deactivates,
The warning light illuminates on the LCD display, when you cancel the FCA system. The driver can monitor the FCA ON/OFF status on the LCD display. Also, the warning light illuminates when the ESC (Electronic Stability Control) is turned off. If the warning light remains ON when the FCA is activated, have the system checked by an authorized HYUNDAI dealer.

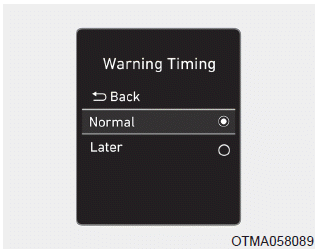

• Setting Warning Timing
The driver can select the initial warning activation time on the LCD display.
Go to the 'User Settings → Driver Assistance → Warning Timing → Normal/Later'.
The options for the initial Forward Collision Warning includes the following:
- Normal :
When this option is selected, the initial Forward Collision Warning is activated sensitively. If you feel the warning activates too early, set the Forward Collision Warning to 'Later'.
Even though, 'Normal' is selected if the front vehicle suddenly stops the initial warning activation time may not seem fast.
- Later :
When this option is selected, the initial Forward Collision Warning is activated later than normal. This setting reduces the amount of distance between the vehicle ahead before the initial warning occurs.
Select 'Later' when traffic is light and when driving speed is slow.
Information
If you change the warning timing, the warning time of other systems may change. Always be aware before changing the warning timing.
Prerequisite for activation
The FCA system is on and ready when 'Active Assist' or 'Warning Only' under Forward Safety is selected in the LCD display and when the following prerequisites are satisfied:
- The ESC (Electronic Stability Control) is on.
- Driving speed exceeds approximately 6mph (10 km/h) (The FCA is only activated
within a certain speed range.).
- The system detects a vehicle in front, which may collide with your vehicle. (The
FCA may not be activated or may sound a warning alarm in accordance with the driving
situation or vehicle condition.)
WARNING
