Hyundai Elantra: Brake System / Stop Lamp Switch Schematic Diagrams

Schematic Diagram

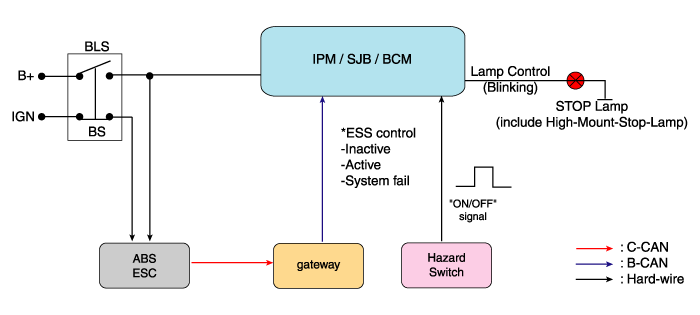

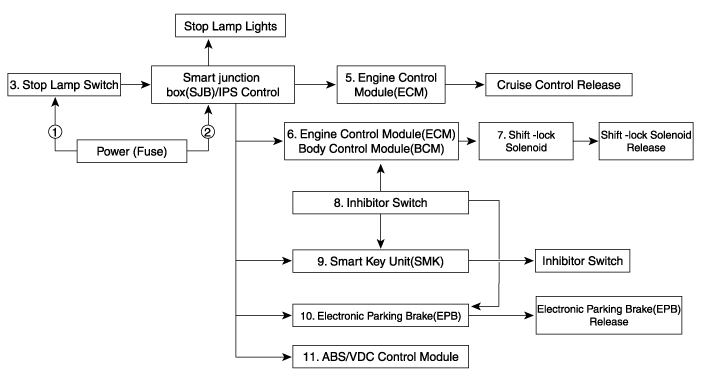

System circuit diagram

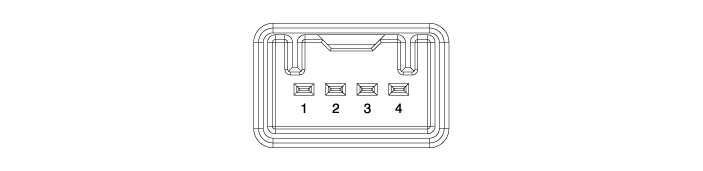

Terminal function

Teminal
Description
1
IGN1
2
Engine Control Module (ECM)
3
B+
4
Stop Lmap

Stop Lamp Switch Components and Components Location
Components 1. Stop lamp switch2. Brake pedal member assembly3. Return spring4. Bolt5. Brake pedal arm assembly ...

Stop Lamp Switch Troubleshooting
Troubleshooting 1. Part diagnosis Items Cause Symptom Switch fuse Faulty fuse connection, Damaged fuse - DTC Code : P0504 - Symptom : Shifting gear trouble, Starting failure ...
