Hyundai Elantra: Engine Start/Stop Button / Starting the engine

WARNING

Information

Vehicle with manual transmission:

1. Always carry the smart key with you.

2. Make sure the parking brake is applied.

3. Make sure the shift lever is in neutral.

4. Depress the clutch and brake pedals.

5. Press the Engine Start/Stop button.

Information

Depress the brake pedal and clutch pedal until the engine starts.

Vehicle with Intelligent Variable Transmission (IVT)/dual clutch transmission:

1. Always carry the smart key with you.

2. Make sure the parking brake is applied.

3. Make sure the shift lever is in P (Park).

4. Depress the brake pedal.

5. Press the Engine Start/Stop button.

Information

NOTICE

To prevent damage to the vehicle:

NOTICE

To prevent damage to the vehicle: When the stop lamp switch fuse is blown, you can't start the engine normally. Replace the fuse with a new one. If you are not able to replace the fuse, you can start the engine by pressing and holding the Engine Start/Stop button for 10 seconds with the Engine Start/Stop button in the ACC position.

Do not press the Engine Start/ Stop button for more than 10 seconds except when the stop lamp switch fuse is blown.

For your safety always depress the brake pedal before starting the engine.

Hyundai Elantra. Starting the engine

Information

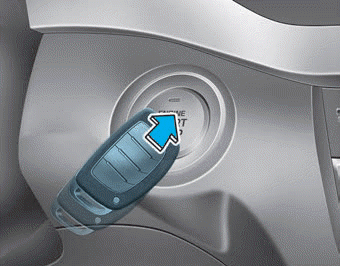

If the smart key battery is weak or the smart key does not work correctly, you can start the engine by pressing the Engine Start/Stop button with the smart key in the direction of the picture above.

Engine Start/Stop Button
Whenever the front door is opened, the Engine Start/Stop button will illuminate and will go off 30 seconds after the door is closed. WARNING To reduce risk of serious injury or death, NEVER allo ...
