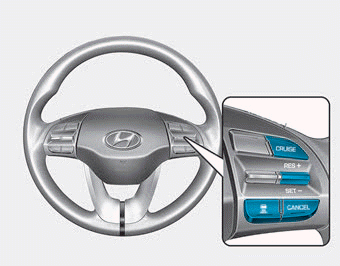

CRUISE: Turns cruise control system on or off.
RES+: Resumes or increases cruise control speed.
SET-: Sets or decreases cruise control speed.
: Sets vehicle-to-vehicle distance.
CANCEL: Cancels cruise control operation.
