Hyundai Elantra: Ignition Switch / Engine Start/Stop Button

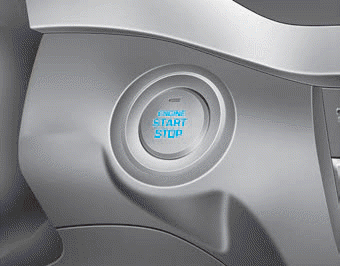

Hyundai Elantra. Engine Start/Stop Button

Whenever the front door is opened, the Engine Start/Stop button will illuminate and will go off 30 seconds after the door is closed.

WARNING

To reduce risk of serious injury or death, NEVER allow children or any person who is unfamiliar with the vehicle to touch the Engine Start/Stop button or related parts. Unexpected and sudden vehicle movement can occur.

WARNING

To turn the engine off in an emergency:

Press and hold the Engine Start/Stop button for more than two seconds OR rapidly press and release the Engine Start/ Stop button three times (within three seconds).

If the vehicle is still moving, you can restart the engine without depressing the brake pedal by pressing the Engine Start/Stop button with the shift lever in the N (Neutral) position.

WARNING

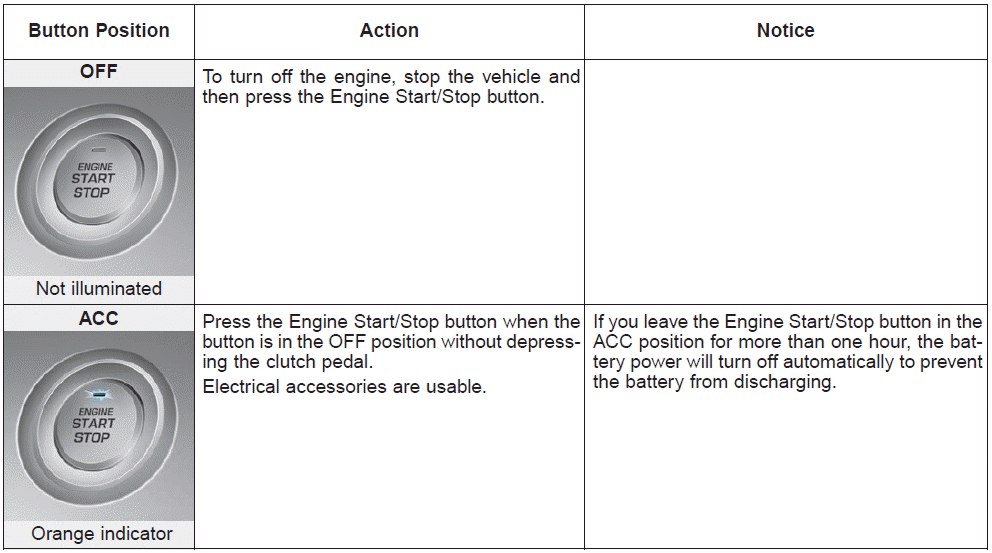

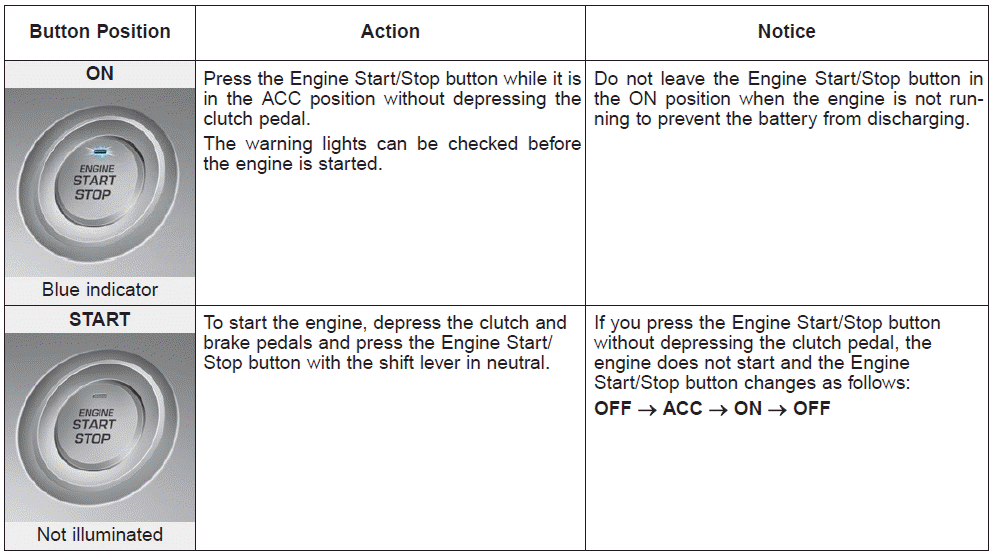

Engine Start/Stop button positions - Vehicle with manual transmission

Hyundai Elantra. Engine Start/Stop Button

Hyundai Elantra. Engine Start/Stop Button

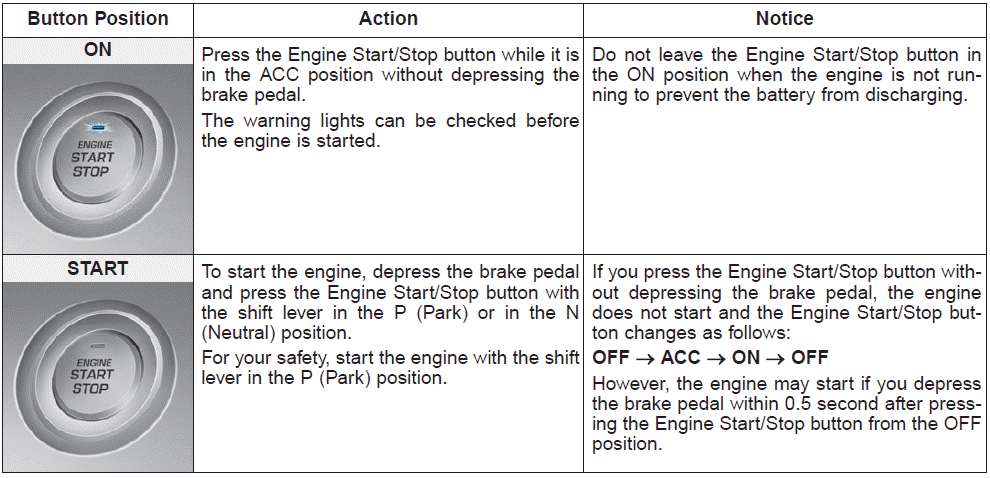

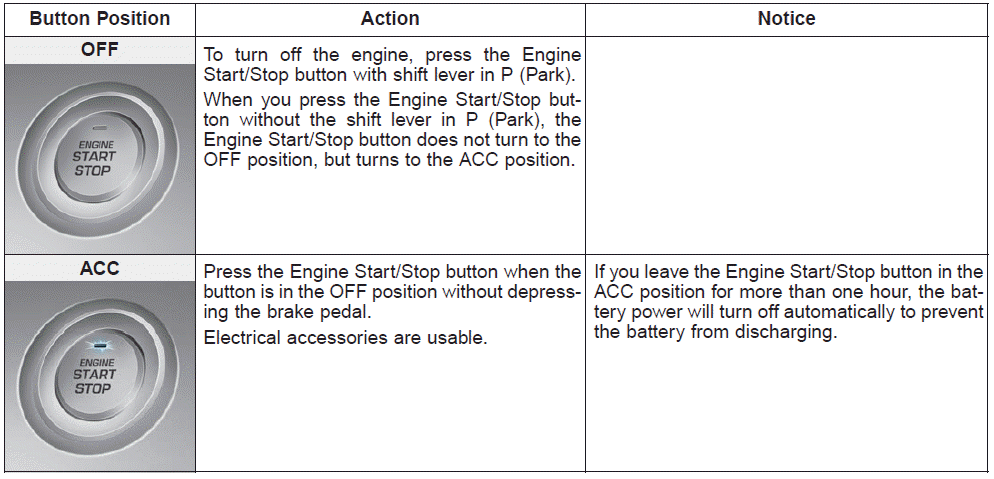

Engine Start/Stop button positions - Vehicle with Intelligent Variable Transmission (IVT)/dual clutch transmission

Hyundai Elantra. Engine Start/Stop Button

Hyundai Elantra. Engine Start/Stop Button

Starting the engine
WARNING Always wear appropriate shoes when operating your vehicle. Unsuitable shoes, such as high heels, ski boots, sandals, flipflops, etc., may interfere with your ability to use the brake and a ...

Starting the engine
WARNING Always wear appropriate shoes when operating your vehicle. Unsuitable shoes, such as high heels, ski boots, sandals, flip-flops, etc., may interfere with your ability to use the brak ...
