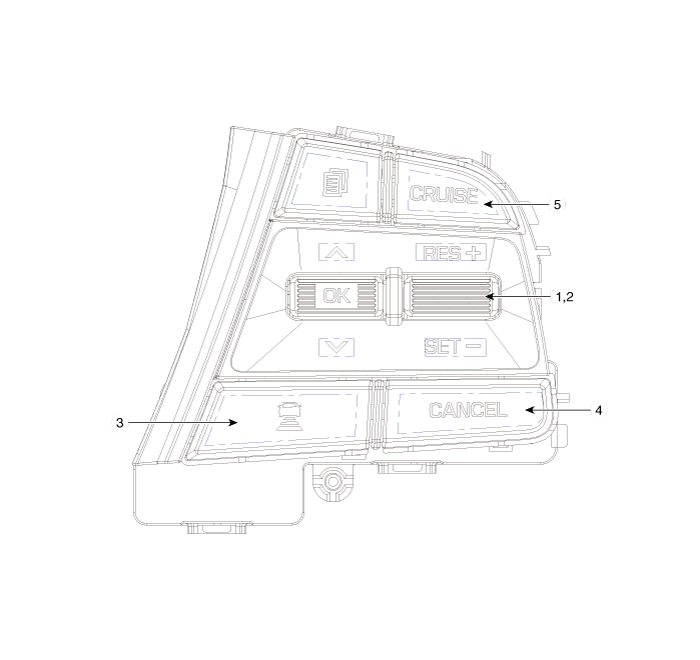

Components

1. SET - switch
2. RES + switch
3. SCC switch
4. CANCEL switch
5. CRUISE switch

Smart Cruise Control Unit Repair procedures
Removal 1. Remove the bumper. (Refer to Body - "Front Bumper") 2. Disconnect the smart cruise control unit connector (A). 3. Remove the smart cruise control unit assembly (B) from v ...

Smart Cruise Control Switch Schematic Diagrams
Circuit Diagram ...
