Hyundai Elantra: Smart Cruise Control System / Smart Cruise Control Switch Schematic Diagrams

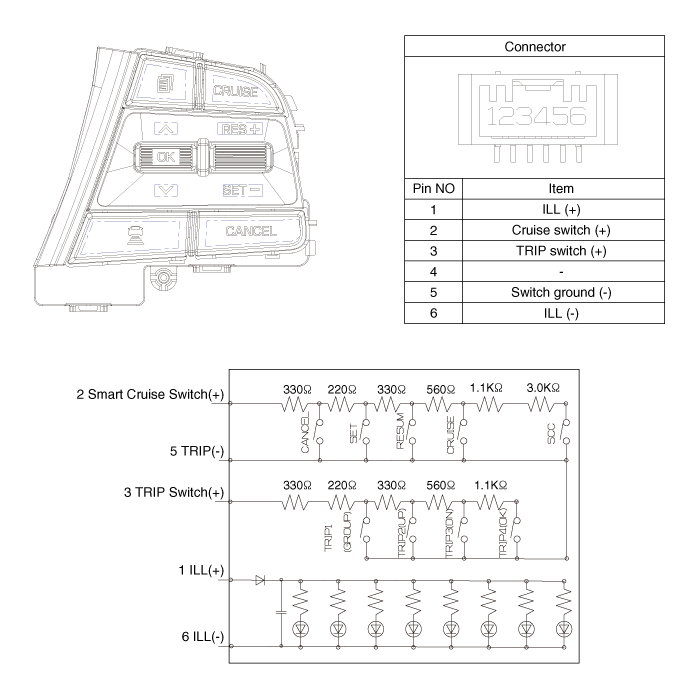

Circuit Diagram

Smart Cruise Control Switch Components and Components Location
Components 1. SET - switch2. RES + switch3. SCC switch4. CANCEL switch5. CRUISE switch ...

Smart Cruise Control Switch Repair procedures
Inspection [Measuring Resistance] 1. Disconnect the cruise control switch connector from the control switch. 2. Measure resistance between terminals on the control switch when each function ...
