Hyundai Elantra: Body Dimensions / Side Body Body Repair
Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Body Dimensions / Side Body Body Repair

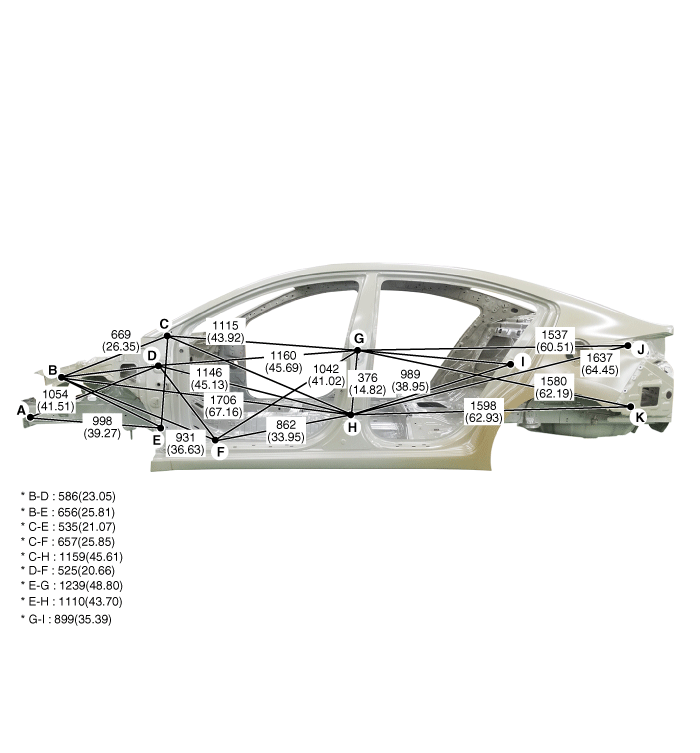

| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
|
|
|
| Fornt side outer member mounting hole (O6.6) | Fornt side outer member mounting hole (O6.6) | Fender apron upper reinforcement tooling hole (O8) |
|
|
|
| Fender mounting hole (O11) | Front door upper hinge mounting hole (O13) | Front door lower hinge mounting hole (O13) |
|
|
|
| Side outer panel corner | Rear door upper hinge mounting hole (O13) | Rear door lower hinge mounting hole (O13) |
|
|
|
| Rear door switch mounting hole (O10) | Rear combination lamp mounting hole (O15) | Side outer panel tooling hole (O22) |
Front Body Body Repair
Front Body A
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]
Front Body B
* These dimensions indicated in this figure are actual-measurem ...
Interior Body Repair
Interior A
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]
Interior B
* These dimensions indicated in this figure are actual-measurement ...
