Hyundai Elantra: Body Dimensions / Interior Body Repair
Hyundai Elantra AD (2016-2020) Service Manual / Body (Interior and Exterior) / Body Dimensions / Interior Body Repair

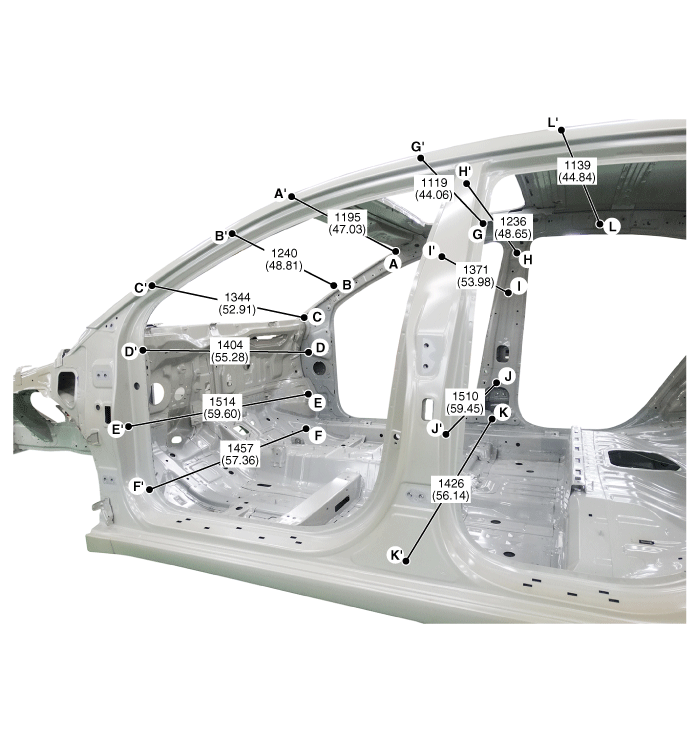

| Interior A |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
| Interior B |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |

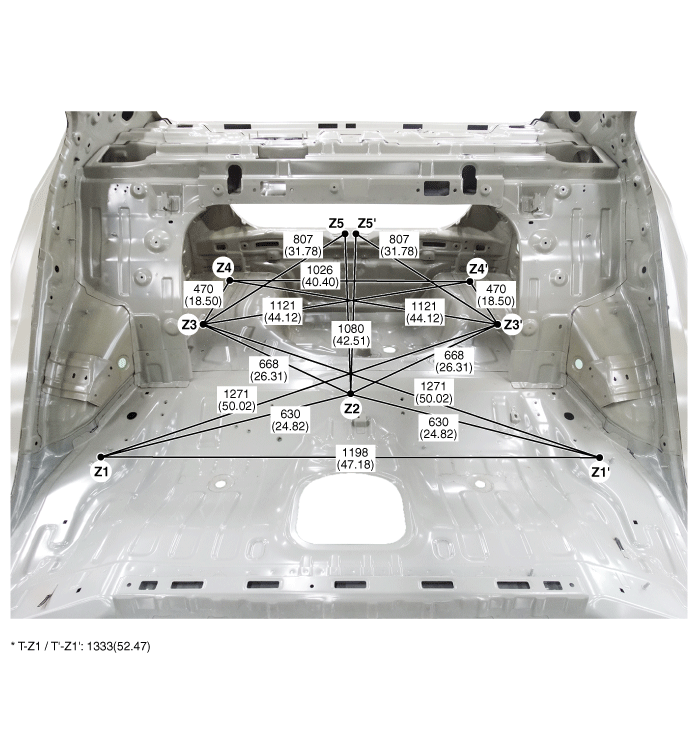

| Interior C |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |

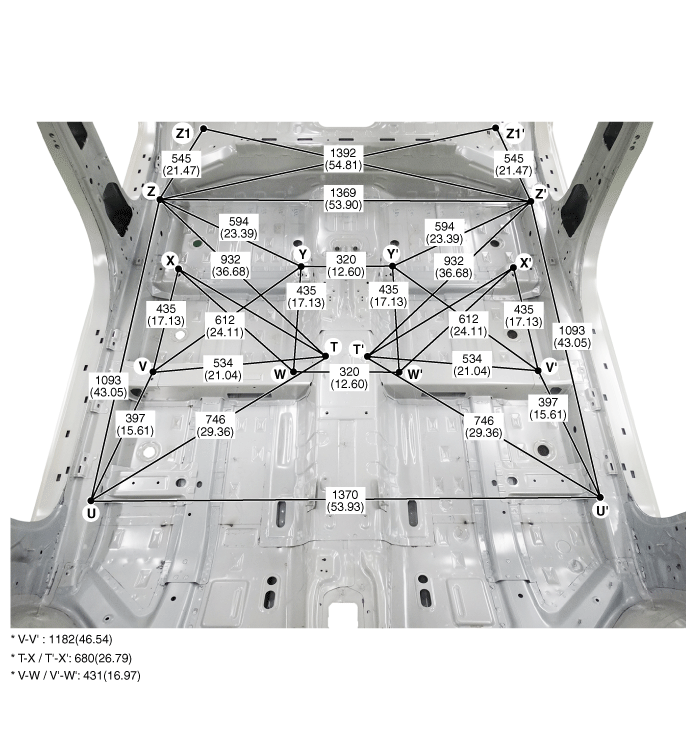

| Interior D |
| * These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ] |
|
|
|
| Front inner upper pillar tooling hole (O6.6) | Front inner upper pillar tooling hole (O6.6) | Curtain airbag mounting hole (O6.6) |
|
|
|
| Curtain airbag mounting hole (O6.6) | Cowl crossbar mounting hole (O9) | Front door checker mounting hole (O13) |
|
|
|
| Cowl side trim mounting hole (O8.5) | Curtain airbag mounting hole (O6.5) | Seat belt height adjuster upper mounting hole (O16) |
|
|
|
| Seat belt height adjuster lower mounting hole (O16) | Rear door checker mounting hole (O13) | Seat belt pretensioner mounting hole (O14) |
|
|
|
| Curtain airbag mounting hole (O6.6) | Curtain airbag mounting hole (O6.6) | Curtain airbag mounting hole (O6.6) |
|
|
|
| Curtain airbag mounting hole (O6.6) | Package tray mounting hole (O6.6) | Package tray mounting hole (O6.6) |
|
|
|
| Rear package tray tooling hole (O5.5) | Quarter inner panel tooling hole (O8.4) | Rear door striker mounting hole (O13) |
|
|
|
| Quarter inner upper panel tooling hole (O7) | Quarter inner upper panel tooling hole (O7) | Wiring mounting hole (O9) |
|
|
|
| Front side sill corner | Front seat mounting hole (O13) | Front seat mounting hole (O11) |
|
|
|
| Front seat mounting hole (O11) | Front seat mounting hole (O11) | Side sill inner corner |
|
|
|
| Rear seat belt mounting hole (O16) | Rear seat belt mounting hole (O16) | Luggae trim mounting hole (O6.6) |
|
|
|
| Rear floor panel mounting hole (O6.6) | Rear floor panel mounting hole (O6.6) | Luggae trim mounting hole (O6.6) |
| ||
| Trunk lid striker mounting hole (O9) |
Side Body Body Repair
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]
Fornt side outer member mounting hole (O6.6)Fornt side outer member mounting hole (O6.6)Fen ...
Rear Body Body Repair
* These dimensions indicated in this figure are actual-measurement dimensions. [ Unit : mm (inch) ]
Side outer panel rear cornerSide outer panel rear cornerSide outer panel rear cornerRear co ...
