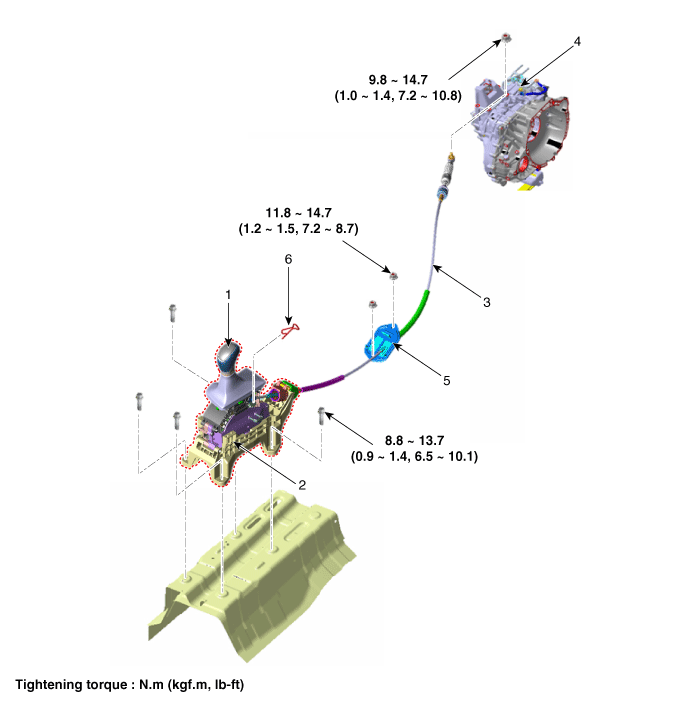

Components Location

1. Shift lever knob & boots
2. Shift lever assembly
3. Shift cable

4. Manual control lever
5. Shift cable retainer
6. Snap pin

Inhibitor Switch Repair procedures

Inspection Inspection flow of the inhibitor switch Items to check 1. Inspect DTC code. 2. Inspect whether N setting matches. A. Adjust N setting (refer to automatic transmission system ...

Shift Lever Repair procedures

Removal 1. Pull the knob (A) in the direction of "F" and remove the knob. 2. Disconnect the connector (B) from the shift lever. 3. Disconnect the fixing clip (A) of wiring. 4. Discon ...
